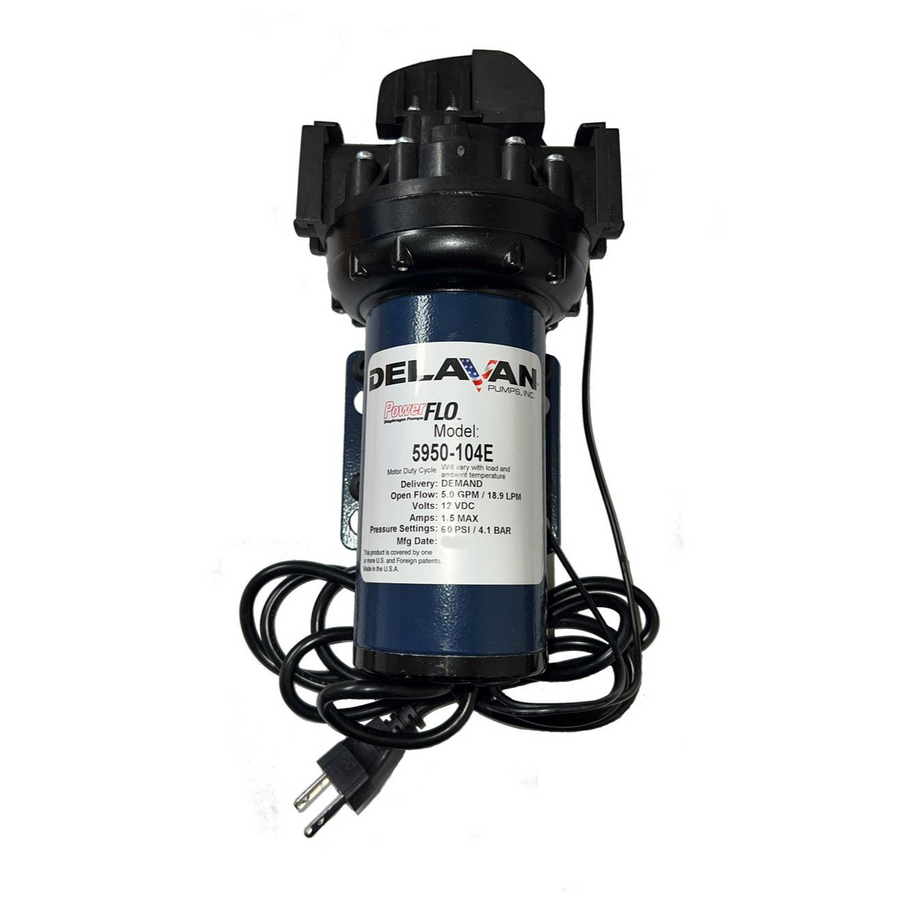

Delavan 5950-104E PowerFLO 115V AC Diaphragm Pump, 5.0 GPM, 60 PSI, Demand Switch, 3/4" Quick Attach, 6' Cord
Regular Price
$211.36
Press & drag to view
The Delavan 5950-104E brings the 5.0 GPM PowerFLO 5950 pump to 115 volt AC power. A built-in demand switch turns the motor on when you open a valve and off when you close it at 60 PSI, so it only runs when you need flow. With 3/4" Quick Attach ports, a 6 foot cord with plug and NSF/ANSI 61 and 372 certification, it is well suited to water transfer, washdown and spray setups next to an outlet.
Key Features
- Certified to NSF/ANSI Standard 61 & 372
- Made in the USA
- 100% Factory tested
- 2 Year warranty from date of purchase
- NSF/ANSI Standard 61 – Drinking Water System Components – Health Effects
- NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act
- Demand Switch – Operates only when liquid flow is required
- Capable of being run dry
- Excellent self-priming capability
Specifications
| Brand | Delavan |
|---|---|
| Manufacturer Part Number | 5950-104E |
| Motor Type | 115 VAC permanent magnet, totally enclosed, non-ventilated |
| Motor Leads | 6′ with plug |
| Motor Amps | 1.5 Max |
| Motor Duty Cycle | See Heat Rise graph |
| Motor Shell | Coated Steel |
| Housing | Polypropylene |
| Valves | Viton |
| Diaphragm | Santoprene |
| Fasteners | Stainless Steel |
| Pump Type | 5-chamber positive displacement |
| Liquid Temperature | 140° F Max. |
| Priming Capabilities | 14’ |
| Max. Flow | 5.0 GPM |
| Pressure Shut-Off | 60 PSI |
| Inlet/Outlet Ports | 3/4” Quick Attach |
| Weight | 7.0 lbs |
Frequently Asked Questions
How does the demand switch on the 5950-104E work?
The pump runs until system pressure reaches the 60 PSI shut-off point, then the pressure switch turns the motor off. When you open a valve or spray gun and pressure drops, it restarts automatically.
What are Quick Attach ports?
Quick Attach (QA) ports use a clip-on fitting system instead of threads. The 5950-104E has 3/4" QA ports, so you can swap barbs or threaded adapters in seconds without pipe sealant.
How much power does it use?
The 115 VAC motor draws up to 1.5 amps and comes with a 6 foot power cord and plug, so it runs from a standard outlet.
What liquids can it pump?
It has a polypropylene housing, Viton valves and a Santoprene diaphragm, which handle water and most common agricultural and cleaning solutions up to 140°F. Do not use it with flammable liquids.
Is it made in the USA?
Yes. The Delavan 5950-104E is made in the USA, 100% factory tested and covered by a 2 year warranty from the date of purchase.
