Delavan 7812A-201-HS PowerFLO 12V Diaphragm Pump with Heat Sink, 1.7 GPM, 80 PSI, Demand, 3/8" FNPT

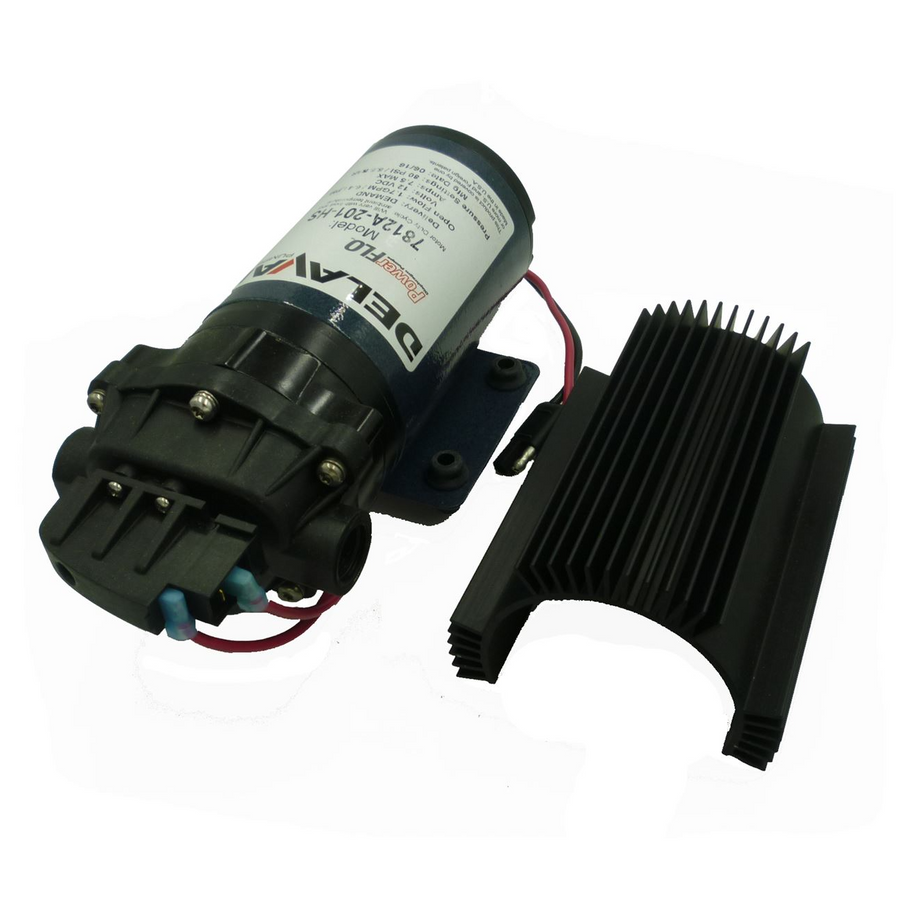

The Delavan 7812A-201-HS is a higher-pressure 12 volt pump that shuts off at 80 PSI and comes with a snap-fit aluminum heat sink already installed. The heat sink reduces motor heat by up to 30%, extending run time and motor life on demanding spray jobs. It delivers 1.7 GPM through 3/8" FNPT ports and is made in the USA.

Key Features

• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• Snap-fit heat sinks will reduce motor heat up to 30%
• Help to extend the available run time of the pump as well as increase motor life
• Heat sinks are made of extruded aluminum with a black anodized finish
• Demand Switch – Operates only when liquid flow is required
• Capable of being run dry
• Excellent self-priming capability

Specifications

Frequently Asked Questions

Why choose the 80 PSI version?

The 7812A shuts off at 80 PSI instead of 60 PSI, giving more pressure for longer spray distance, handguns and multi-nozzle setups at a flow of 1.7 GPM.

What does the heat sink do?

The extruded aluminum heat sink snaps onto the motor and reduces motor heat by up to 30%, which extends available run time and motor life.

How much current does it draw?

Up to 7.5 amps at 12 VDC, through 14 AWG leads 6" long with a 2-pin connector.

What ports does it have?

3/8" FNPT threaded inlet and outlet ports.

Can it run dry and self-prime?

Yes. It can be run dry and self-primes up to 14 feet. Maximum liquid temperature is 140°F.
