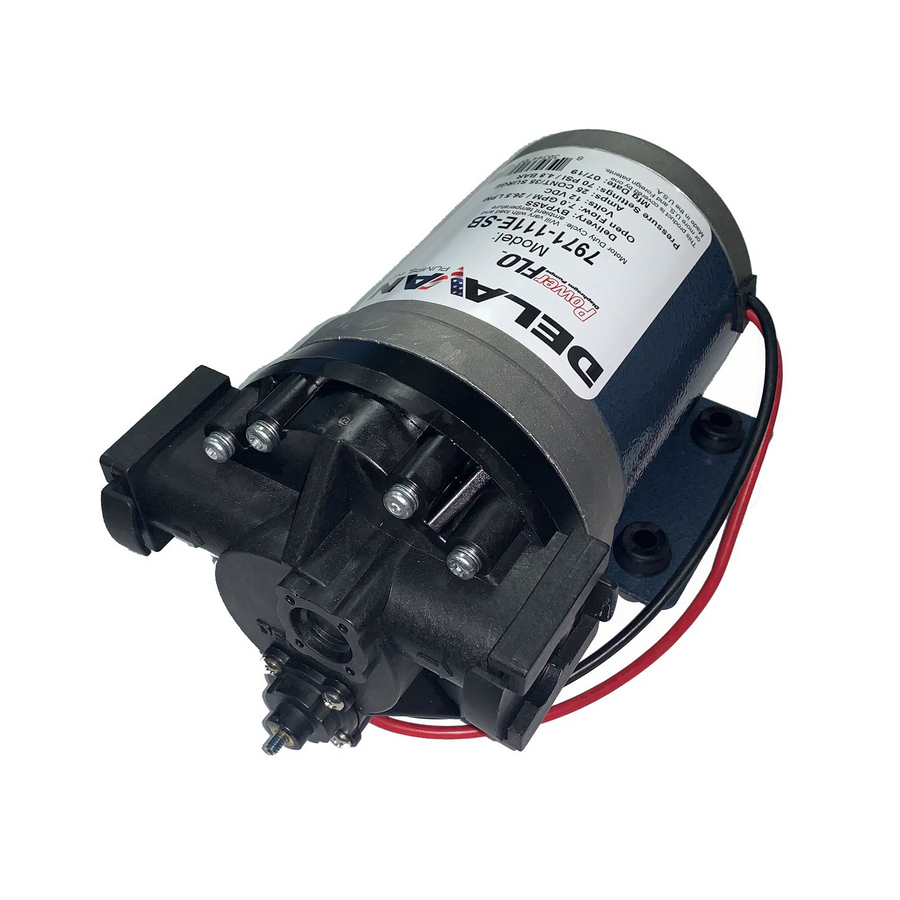

Delavan 7971-111E-SB FB3 Advanced 12V Diaphragm Pump, 7.0 GPM, 60 PSI, Bypass, 3/4" Quick Attach Ports

The Delavan 7971-111E-SB is a 60 PSI bypass FB3 Advanced pump with 3/4" Quick Attach ports. It moves 7.0 GPM continuously and is built for boom sprayers, agitation and transfer where you want fast fitting changes.

Key Features

• FB3 pumps are Delavan’s new advanced 12V smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 12V pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor
• Bypass Design – Continuous operation with internal bypass
• Capable of being run dry
• Excellent self-priming capability

Specifications

Frequently Asked Questions

What is the amp rating?

25 amps continuous and 35 amps surge at 12 VDC.

What does bypass mean here?

The pump keeps running with outlets closed and recirculates liquid internally. Delavan recommends a heat sink for continuous use.

What ports does it have?

3/4" Quick Attach. The 1/2" FNPT version is the 7871-111E-SB.

Max liquid temperature?

140°F.

Is it made in the USA?

Yes, and it is 100% factory tested.
