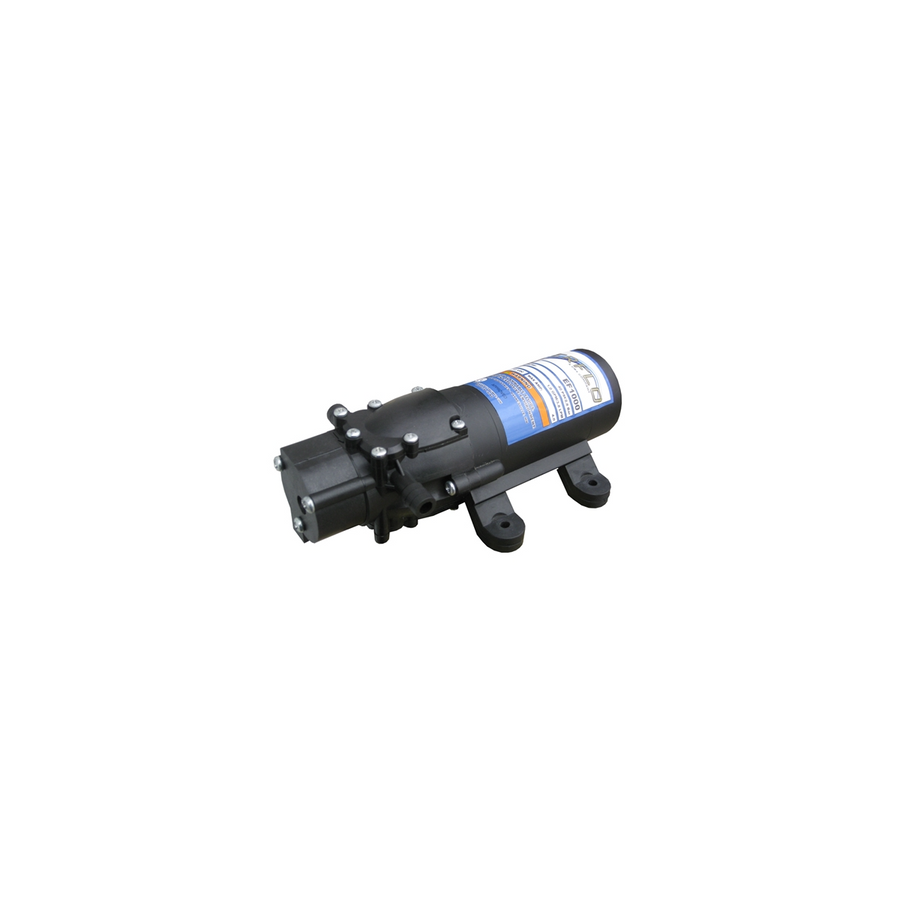

Everflo EF1000 12V Diaphragm Sprayer Pump, 1.0 GPM, 40 PSI, Demand Switch, 3/8" Hose Barb Ports

The Everflo EF1000 is a compact 12 volt demand pump for spot sprayers, small agricultural sprayers and fluid transfer. It delivers 1.0 GPM at up to 40 PSI, shuts off automatically when flow stops and draws only 4.0 amps. Viton valves, a Santoprene diaphragm and a Honeywell micro switch make it a reliable replacement pump.

Key Features

• Polypropylene pump housing and valve plate
• Viton® Valves – Santoprene® Diaphragm
• Zinc Plated Steel fasteners
• Polypropylene 2” Motor Shell
• Honeywell™ Micro Switch
• Round-Up® Ready
• Self Priming up to 4’ above fluid level
• Demand Switch – Operates only when liquid flow is required
• Inline fuse protection
• Wire leads with 2-pin connector
• Owner’s manual and colored box
• CE Approved*

Specifications

Frequently Asked Questions

What sprayers does the Everflo EF1000 replace?

It is a general replacement for 12V agricultural spot sprayers and transfer units that use a 1.0 GPM, 40 PSI demand pump with 3/8" hose barb connections.

How much current does it draw?

A maximum of 4.0 amps at 12 VDC. It comes with inline fuse protection and wire leads with a 2-pin connector.

Is it compatible with Roundup?

Yes. The EF1000 is Round-Up Ready, with Viton valves and a Santoprene diaphragm.

How high can it self-prime?

Up to 4 feet above the fluid level.

What is the maximum fluid temperature?

140°F.
