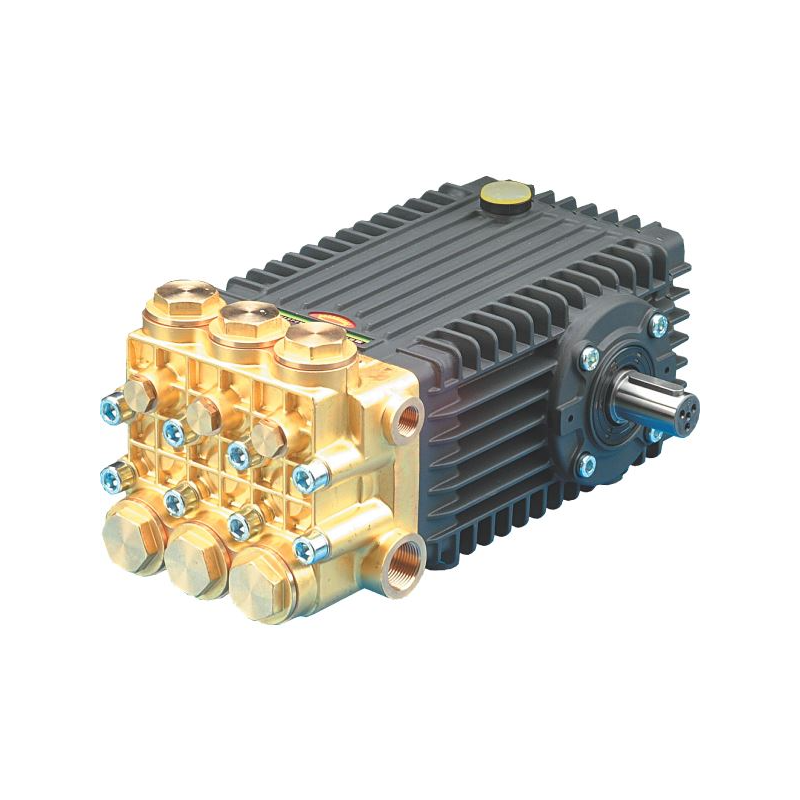

General Pump TSF2221 66 Series High Flow Triplex Pump, 3000 PSI, 8.5-10.2 GPM, 24mm Solid Shaft
Regular Price
$1,209.98
Press & drag to view
The General Pump TSF2221 is a 66 Series high flow triplex plunger pump for large industrial cleaning systems. It delivers 8.5 GPM at 1,450 RPM or 10.2 GPM at 1,750 RPM, at up to 3,000 PSI, through a 24mm solid shaft for belt or gear drive. It has oversized roller bearings, a fully anodized crankcase and an improved seal and plunger design.
Key Features
- Oversized roller bearings
- Fully anodized crankcase
- Innovative new seal design extends seal life
- New plunger design improves thermal shock resistance
- New valve cap improves hydrostatic performance
- Triplex Plunger Pump
- Solid Shaft for Belt or Gear Drive
Specifications
| Brand | General Pump |
|---|---|
| Manufacturer Part Number | TSF2221 |
| Max. Discharge Pressure | 3,000 PSI |
| Max. Volume | 8.5 GPM @ 1,450 RPM / 10.2 GPM @ 1,750 RPM |
| Shaft Diameter | 24mm Solid |
| Max. Horsepower Requirements (EBHP) | 17.5 @ 8.5 GPM/21.0 @ 10.2 GPM |
| Maximum Inlet Pressure | 125 PSI |
| Oil Capacity | 33.8oz. |
| Max. Fluid Temp. | 165° F. |
| Inlet Ports (2) | 3/4″-14 BSP-F |
| Discharge Ports (2) | 3/8-19 BSP-F |
| Drive Side | Standard right |
| Dimensions | 14.94″ x 9.78″ x 6.99″ |
| Weight | 40.7 lb. |
Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
Frequently Asked Questions
How much flow does it deliver?
8.5 GPM at 1,450 RPM or 10.2 GPM at 1,750 RPM, up to 3,000 PSI.
What horsepower is required?
17.5 EBHP at 8.5 GPM or 21.0 EBHP at 10.2 GPM.
What are the port threads?
Two 3/4"-14 BSP female inlets and two 3/8-19 BSP female outlets.
How much oil does it hold?
33.8 oz.
Is an unloader included?
No. It is pump only.
