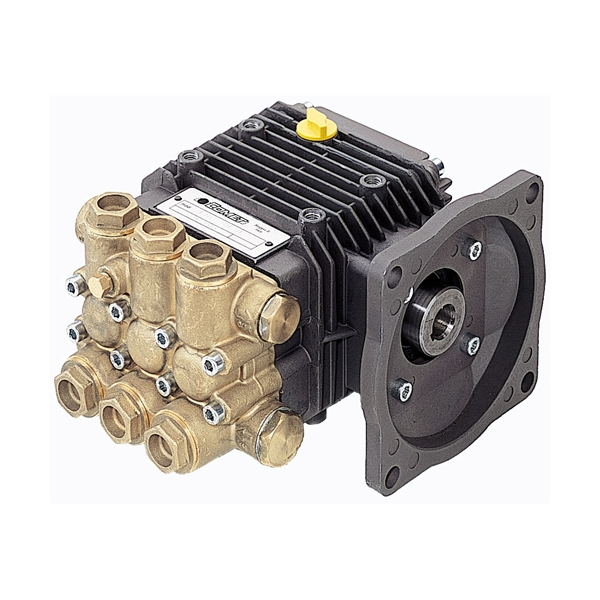

Comet LWD 3522GE Triplex Plunger Pump, 2200 PSI, 3.5 GPM, 3400 RPM, NEMA 56C, 3/4" Hollow Shaft (31003-00058)

Name: Comet LWD 3522GE Triplex Plunger Pump, 2200 PSI, 3.5 GPM, 3400 RPM, NEMA 56C, 3/4" Hollow Shaft (31003-00058)
Brand: Comet Pump
SKU: 31003-00058
Price: 649.79 USD
Availability: OutOfStock

Vendor: Comet Pump Type: Plunger Pump

$649.79

Shipping calculated at checkout.

Out of Stock

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

The Comet LWD 3522GE (part 31003-00058) is the 3/4" hollow shaft version of the LWD 3522, with a NEMA 56C electric flange. It delivers 3.5 GPM at up to 2,200 PSI at 3,400 RPM and has a reversible crankcase, forged brass head and solid ceramic plungers.

Key Features

Triplex Plunger Pump
Direct Drive with Electric Flange NEMA 56C
Forged brass head & valve covers
Solid ceramic plungers
Replaces Comet # 6303.0804.00

Specifications

Brand	Comet Pump
Manufacturer Part Number	31003-00058
Max. Volume	3.5 GPM
Max. Discharge Pressure	2,200 PSI
Max. Pump Speed	3400 RPM
Shaft Diameter	3/4” Hollow
Max. Horsepower Requirements	5.3 BHP
Max. Fluid Temp.	145º degrees F.
Inlet Ports (2)	1/2″ NPT
Discharge Ports (2)	3/8″ NPT
Drive Side	Reversible crankcase for right or left hand mounting
Weight	13.4 lb.

Frequently Asked Questions

How is it different from the LWD 3522E?

Same performance, but the 3522GE has a 3/4" hollow shaft instead of 5/8".

What does it replace?

Comet 6303.0804.00.

How much horsepower is needed?

5.3 BHP.

What are the ports?

Two 1/2" NPT inlets and two 3/8" NPT outlets.

Max fluid temperature?

145°F.

Product Specifications

Specification Name	Specification Value
Color pattern	Black
Power source	AC-powered
