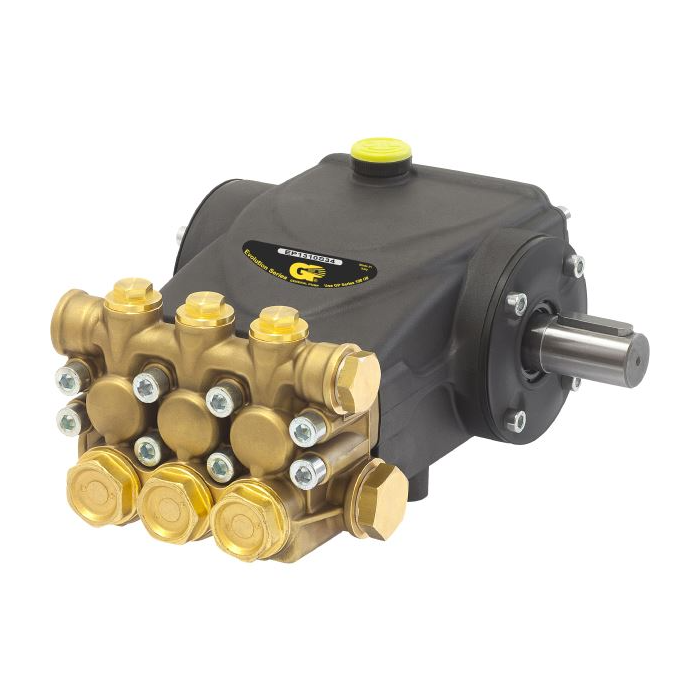

General Pump EP1513S17 EP Series Solid Shaft Triplex Pump, 3045 PSI, 3.2 GPM, 1750 RPM, 24mm Shaft

Name: General Pump EP1513S17 EP Series Solid Shaft Triplex Pump, 3045 PSI, 3.2 GPM, 1750 RPM, 24mm Shaft
Brand: General Pump
SKU: EP1513S17
Price: 510.93 USD
Availability: InStock

Vendor: General Pump Type: Plunger Pump

$510.93

Shipping calculated at checkout.

Hurry up! Only 1 left

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

The General Pump EP1513S17 delivers 3.2 GPM at up to 3,045 PSI at 1,750 RPM through a 24mm solid shaft for belt or gear drive. It replaces the TX1513S17 and has a forged brass manifold, solid ceramic plungers and a dual lip oil seal.

Key Features

Triplex plunger pump
New Forged brass manifold
New plunger guide bushing (patent pending)
Solid ceramic plungers with dual guide system
New dual diameter plunger guide
New optimized outlet valves
New dual lip oil seal
Solid Shaft for Belt or Gear Drive
Dimensions – Nominal: 9.5” x 8.38” x 5.1”
Replaces TX1513S17

Specifications

Brand	General Pump
Manufacturer Part Number	EP1513S17
Max. Volume	3.2 GPM
Max. Discharge Pressure	3,045 PSI
Horsepower	6.5 EBHP
Max. Pump Speed	1,750 RPM
Maximum Inlet Pressure	125 PSI
Oil Capacity	15 oz
Max. Fluid Temp.	165 degrees F.
Inlet Port Thread	1/2”-14 BSP-F
Discharge Port Thread	3/8”-19 BSP-F
Shaft Diameter	.945 in./24 mm
Weight	15.4 lb.

Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation

Frequently Asked Questions

What does it replace?

General Pump TX1513S17.

What horsepower is required?

6.5 EBHP.

What is the maximum inlet pressure?

125 PSI.

What are the dimensions?

Nominal 9.5" x 8.38" x 5.1".

Is an unloader included?

No. It is pump only.

Product Specifications

Specification Name	Specification Value
Color pattern	Black
Hardware material	Brass, Metal
