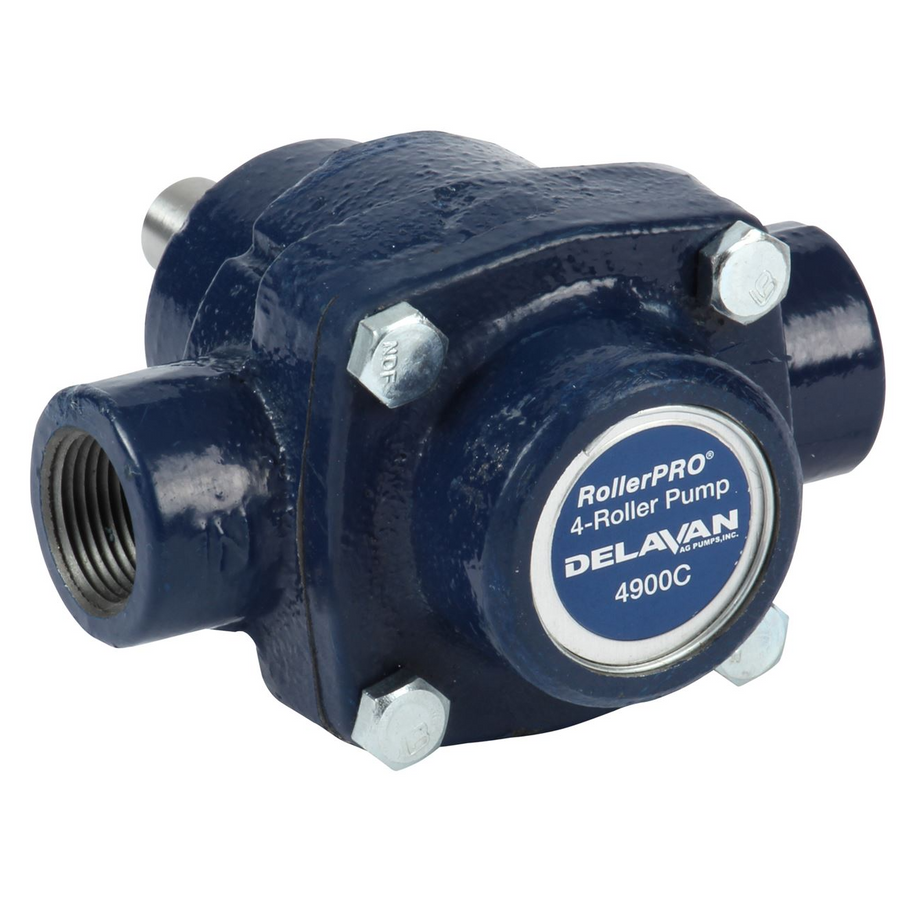

Delavan RollerPRO 4900C 4-Roller Pump, Cast Iron, 9.2 GPM, 100 PSI, 5/8" Solid Shaft, 3/4" NPT, CW Rotation
Regular Price
$162.41
Press & drag to view
The Delavan RollerPRO 4900C is a 4-roller cast iron pump for engine or belt driven sprayers. It delivers up to 9.2 GPM at up to 100 PSI with a maximum speed of 2,600 RPM, and its rollers can be replaced in the field in about 3 minutes. It has a 5/8" solid shaft, 3/4" female NPT ports and Viton cartridge seals.
Key Features
- Complete roller replacements takes about 3 minutes
- To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
- The 4900 Series RollerPRO is the only pump that can not be directly connected to a tractor PTO shaft
- If you wish to use on a PTO, a gearbox is required to increase the speed to 1800 – 2600 RPM
Specifications
| Brand | Delavan |
|---|---|
| Manufacturer Part Number | 4900C |
| Type | 4-Roller design |
| Max. Flow | 9.2 GPM |
| Max Operating Speed | 2,600 RPM |
| Max Pressure | 100 PSI |
| Max Recommended Temperature | 140°F (60° C) |
| Port Size | 3/4” NPT (female) |
| Base Mounted | 5⁄16 -18 UNC-2B (2 holes) |
| PTO | Use torque bar and chain |
| Shaft Size | 5⁄8” solid shaft |
| Rotation | CW (standard) |
| Housing | Cast Iron |
| Rollers | 1/2” Ultra rollers (standard) |
| Shaft Seals | Viton cartridge type lip seals |
| Seal Ring | Viton |
| Shaft & Rotor | Extra-fine finish 404 SST |
| Bearings | Permanently-lubricated, heavy-duty sealed bearings |
| Weight | 5 lbs |
Frequently Asked Questions
Can the 4900C run directly from a tractor PTO?
No. The 4900 Series is the only RollerPRO that cannot be connected directly to a PTO. To use it on a PTO, add a gearbox that raises speed to 1,800 to 2,600 RPM.
What is the rotation?
Clockwise (CW) standard.
What are the ports?
3/4" female NPT inlet and outlet.
How long does a roller change take?
About 3 minutes. RollerPRO pumps are field serviceable.
What is the max fluid temperature?
140°F (60°C).
