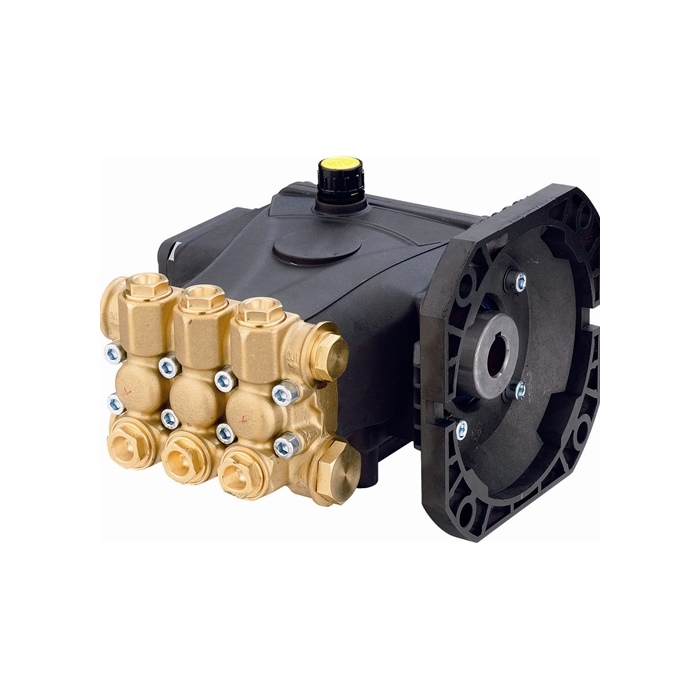

AR Annovi Reverberi RCAM1G15E-F8 Misting Pump, 1500 PSI, 1.0 GPM, 1750 RPM, NEMA 56C, 5/8" Hollow Shaft

The AR Annovi Reverberi RCAM1G15E-F8 is the largest of the RCAM misting pumps, delivering 1.0 GPM at up to 1,500 PSI. It direct-drives NEMA 56C electric motors at 1,750 RPM and is ideal for larger cooling, humidification and dust suppression systems with many nozzles.

Key Features

• Designed for heavy duty misting applications
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications

Frequently Asked Questions

How much horsepower does it need?

1.0 EBHP.

How do I size nozzles for this pump?

Keep the combined flow of all nozzles at your operating pressure at or below 1.0 GPM.

What are the port sizes?

Two 1/2" female inlet ports and two 3/8" female outlet ports.

What is the oil capacity?

9.81 oz.

What is the maximum fluid temperature?

140°F.
