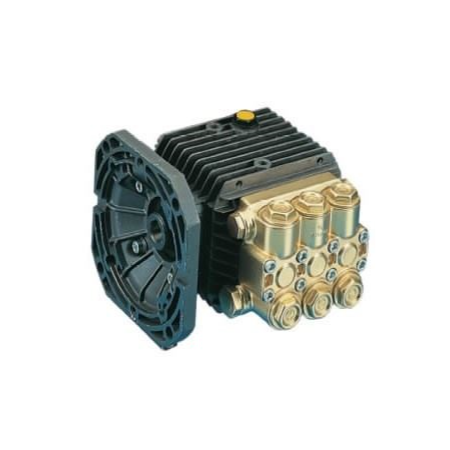

General Pump TT9061EBFL Triplex Plunger Pump, 1500 PSI, 2.11 GPM, 3400 RPM, NEMA 56C, Left Hand
Regular Price
$519.83
Press & drag to view
The General Pump TT9061EBFL is the left-hand version of the TT9061EBF triplex plunger pump. It couples directly to NEMA 56C electric motors at 3,400 RPM and delivers 2.11 GPM at up to 1,500 PSI, with a forged brass head and solid ceramic plungers.
Key Features
- Triplex Plunger Pump
- Direct Drive with Electric Flange NEMA 56C
- Forged brass head & valve covers
- Solid ceramic plungers
Specifications
| Brand | General Pump |
|---|---|
| Manufacturer Part Number | TT9061EBFL |
| Max. Volume | 2.11 GPM |
| Max. Discharge Pressure | 1,500 PSI |
| Max. Pump Speed | 3400 RPM |
| Shaft Diameter | 5/8” Hollow |
| Max. Horsepower Requirements | 2.2 BHP |
| Max. Fluid Temp. | 165º degrees F. |
| Inlet Ports (2) | 3/8″ BSP |
| Discharge Ports (2) | 1/4″ BSP |
| Drive Side | Standard left |
| Weight | 11.5 lb. |
Frequently Asked Questions
When do I need a left-hand pump?
When your machine layout needs the drive on the opposite side from a standard pump. Match the handedness of the pump you are replacing.
What motor does it fit?
NEMA 56C electric motors with a 5/8" shaft at 3,400 RPM.
What horsepower is required?
2.2 BHP.
What are the ports?
Two 3/8" BSP inlets and two 1/4" BSP discharge ports.
Max water temperature?
165°F.
