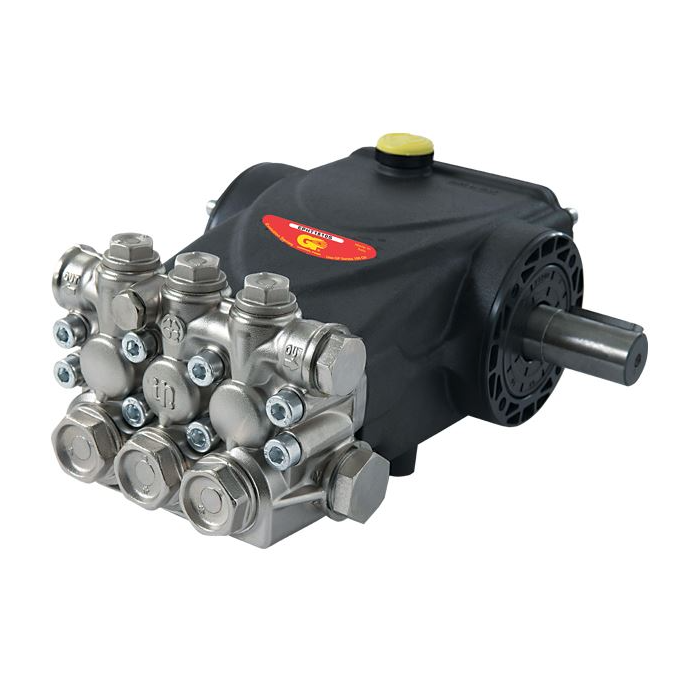

General Pump EPHT1813S High-Temp Solid Shaft Triplex Pump, 2465 PSI, 3.4 GPM, 1750 RPM, 24mm Shaft, 185°F

The General Pump EPHT1813S is an EPHT Series triplex plunger pump with high-temperature seals, rated for fluid up to 185°F. It delivers 3.4 GPM at up to 2,465 PSI at 1,750 RPM through a 24mm solid shaft for belt or gear drive, and features a nickel-plated manifold and patented high tech packings. It replaces the HTXS1813S.

Key Features

• Features patented “high tech” packings:
• Dynamic low-pressure seal retainer
• Superior low-pressure seal
• Innovative intermediate ring
• Superior high-pressure seal
• Nickel-plated manifold
• New forged brass manifold , increases working pressure to 4,000 PSI
• New plunger guide bushing (patent pending)
• Solid ceramic plungers with dual guide system
• New dual diameter plunger guide
• New optimized outlet valves
• New dual lip oil seal
• Solid Shaft for Belt or Gear Drive
• Dimensions – Nominal: 9.5” x 8.38” x 5.1”
• Rail kit part # ZFEETEVO (Not Included)
• Replaces HTXS1813S

Specifications

Note: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation

Frequently Asked Questions

Can it pump hot water?

Yes. It has high-temperature seals and is rated for fluid up to 185°F.

What does it replace?

General Pump HTXS1813S.

Does it include an unloader?

No. It is pump only, and a pressure regulating device is required.

What horsepower is needed?

5.7 EBHP.

Are mounting rails included?

No. Rail kit part ZFEETEVO is sold separately.
