General Pump ET1504E34UTSL Triplex Plunger Pump with Total Start-Stop, 2610 PSI, 2.0 GPM, 3400 RPM, NEMA 56C, Left Hand

Name: General Pump ET1504E34UTSL Triplex Plunger Pump with Total Start-Stop, 2610 PSI, 2.0 GPM, 3400 RPM, NEMA 56C, Left Hand
Brand: General Pump
SKU: ET1504E34UTSL
Price: 547.19 USD
Availability: OutOfStock

Vendor: General Pump Type: Plunger Pump

$547.19

Shipping calculated at checkout.

Out of Stock

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

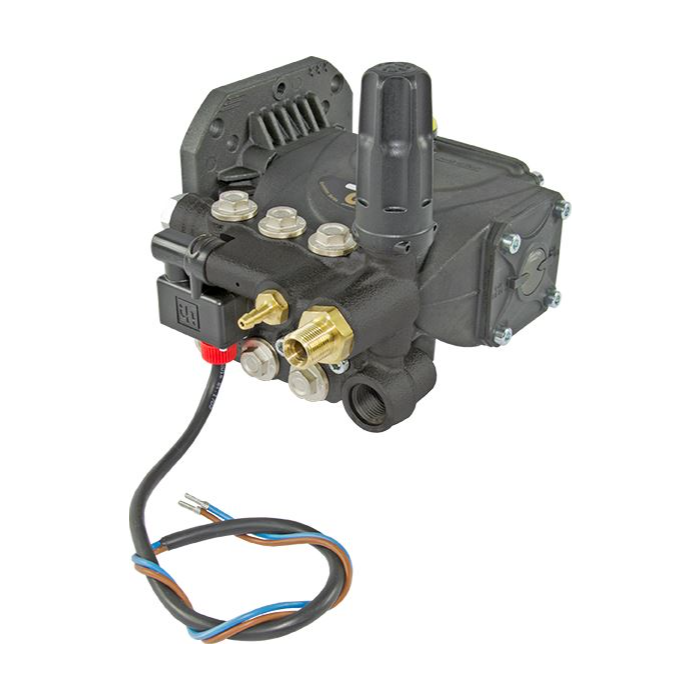

The General Pump ET1504E34UTSL is a left-hand ET Series triplex pump with a built-in unloader and Total Start-Stop. It delivers 2.0 GPM at up to 2,610 PSI on NEMA 56C electric motors at 3,400 RPM and has a nickel-plated cast manifold built like the heavy-duty pump line.

Key Features

Total start-stop feature allows flow to activate electric motor
Built-in unloader
Nickel-plated cast manifold manufactured like heavy-duty pump line
New generation seal package
New dust protection chamber
Solid ceramic plungers
New oversized plunger guide
New optimized inlet and outlet valves
New oil seal
Left side shaft, right side manifold
Dimensions – Nominal: 8″ x 7.4″ x 4.7″

Specifications

Brand	General Pump
Manufacturer Part Number	ET1504E34UTSL
Max. Volume	2.0 GPM
Max. Discharge Pressure	2,610 PSI
Max. Horsepower Requirements	3.6 EBHP
Max. Pump Speed	3,400 RPM
Max. Fluid Temp.	165º F
Oil Capacity	8.5 oz
Inlet Port Thread	1/2″-10 BSP-F
Discharge Port Thread	3/8″-13 BSP-F
Shaft Diameter	5/8” Hollow
Weight	11.0 lb

Frequently Asked Questions

How much flow does it deliver?

Up to 2.0 GPM at 2,610 PSI.

What horsepower motor is needed?

3.6 EBHP.

Does it include an unloader?

Yes, it has a built-in unloader with Total Start-Stop.

What are the dimensions?

Nominal 8" x 7.4" x 4.7".

How much oil does it take?

8.5 oz.
