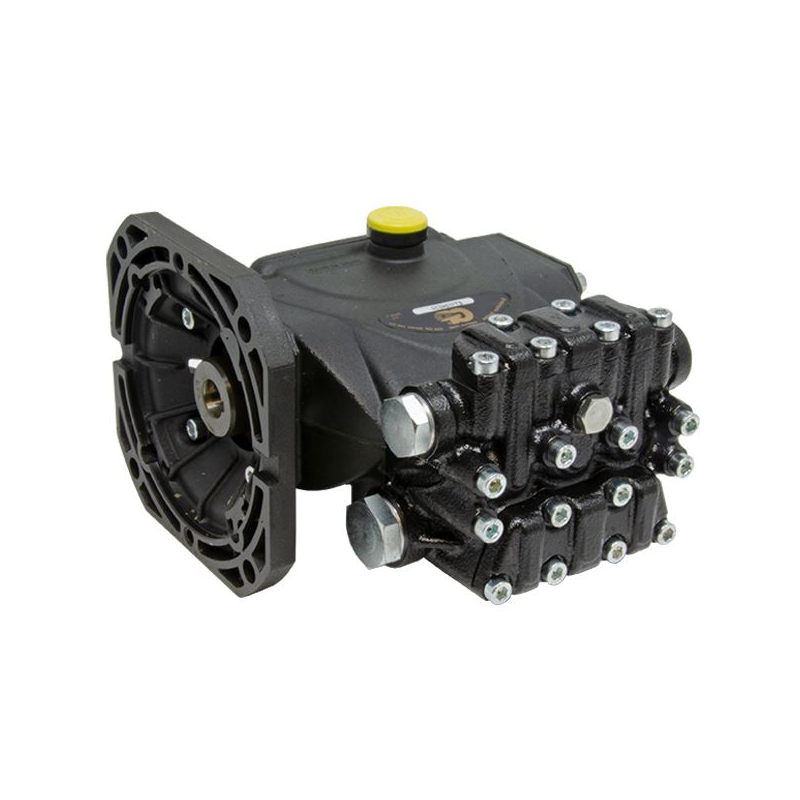

General Pump ET1506E34L ET Series Triplex Plunger Pump, 2610 PSI, 2.9 GPM, 3400 RPM, NEMA 56C, Left Hand
Regular Price
$475.37
Press & drag to view
The General Pump ET1506E34L is the left-hand version of the ET1506E34, delivering 2.9 GPM at up to 2,610 PSI on NEMA 56C electric motors at 3,400 RPM. It has an HR anti-corrosion manifold, new generation seals and solid ceramic plungers.
Key Features
- “HR” anti-corrosion surface treatment on manifold
- New generation seal package
- Dust protection chamber
- Solid ceramic plungers
- Oversized plunger guide
- Optimized inlet and outlet valves
- Oversized crankcase Hollow shaft, flanged for direct couple to electric motors (NEMA56C)
- Dimensions – Nominal: 7.3″ x 7.4″ x 5.5″
Specifications
| Brand | General Pump |
|---|---|
| Manufacturer Part Number | ET1506E34L |
| Max. Volume | 2.9 GPM |
| Max. Discharge Pressure | 2,610 PSI |
| Max. Horsepower Requirements | 5.2 EBHP |
| Max. Pump Speed | 3,400 RPM |
| Max. Fluid Temp. | 165º F |
| Oil Capacity | 8.5 oz |
| Inlet Port Thread | 1/2″-14 BSP-F |
| Discharge Port Thread | 3/8″-19 BSP-F |
| Shaft Diameter | 5/8” Hollow |
| Weight | 11.0 lb |
Frequently Asked Questions
How does it differ from the ET1506E34?
It has the same performance but a left-hand configuration for machines that need the drive on the opposite side.
What horsepower is needed?
5.2 EBHP.
What are the port threads?
1/2"-14 BSP female inlet and 3/8"-19 BSP female discharge.
Does it come with an unloader?
No. For a left-hand pump with a built-in unloader, see the ET1506E34UTSL.
Oil capacity?
8.5 oz.
