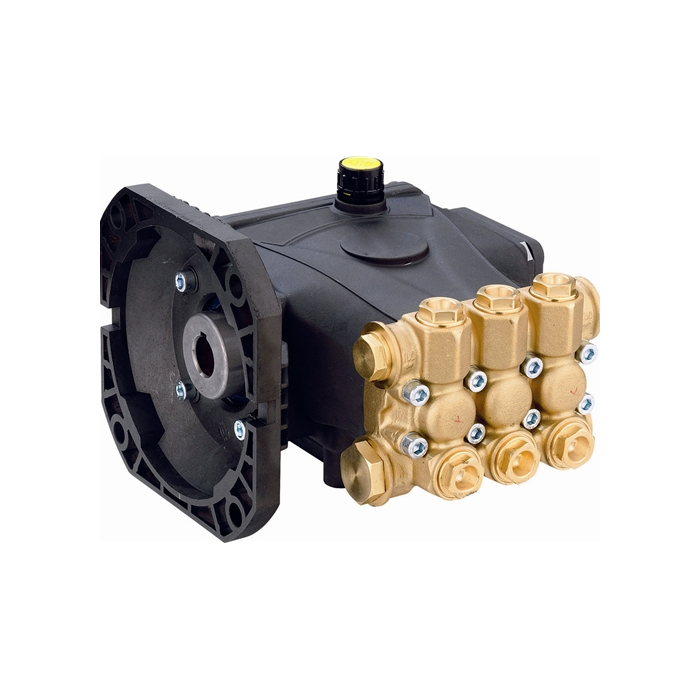

AR Annovi Reverberi RCA2G22E-F8-SX Triplex Plunger Pump, 2200 PSI, 2.0 GPM, 1750 RPM, NEMA 56C, Left Hand
Regular Price
$451.43
Press & drag to view
The AR Annovi Reverberi RCA2G22E-F8-SX is the left-hand version of the RCA2G22E-F8 triplex plunger pump. It direct-drives NEMA 56C electric motors at 1,750 RPM and delivers 2.0 GPM at up to 2,200 PSI, with a forged brass manifold, thick-wall ceramic plungers and stainless steel valves.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCA2G22E-F8-SX |
| Max. Volume | 2.0 GPM |
| Max. Discharge Pressure | 2,200 PSI |
| Max. Pump Speed | 1,750 RPM |
| Shaft Diameter | 5/8” Hollow |
| Drive Side | Left |
| Max. Horsepower Requirements | 3.0 EBHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What does SX mean?
SX is AR's designation for the left-hand drive version.
What horsepower is required?
3.0 EBHP.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
How much oil does it hold?
9.81 oz.
Max water temperature?
140°F.
