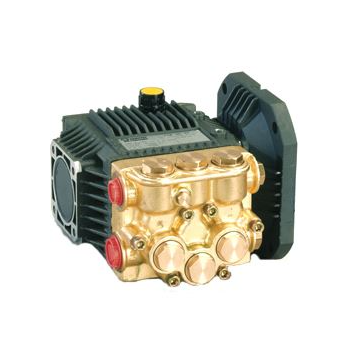

AR Annovi Reverberi XTV3G22D-F8 Triplex Plunger Pump, 2200 PSI, 3.0 GPM, 3400 RPM, NEMA 56C, 3/4" Hollow Shaft

Name: AR Annovi Reverberi XTV3G22D-F8 Triplex Plunger Pump, 2200 PSI, 3.0 GPM, 3400 RPM, NEMA 56C, 3/4" Hollow Shaft
Brand: AR North America
SKU: XTV3G22D-F8
Price: 567.71 USD
Availability: OutOfStock

Vendor: AR North America Type: Plunger Pump

$567.71

Shipping calculated at checkout.

Out of Stock

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

The AR Annovi Reverberi XTV3G22D-F8 is a triplex plunger pump with a NEMA 56C electric flange and 3/4" hollow shaft. It delivers 3.0 GPM at up to 2,200 PSI at 3,400 RPM and has a forged brass head and solid ceramic plungers.

Key Features

Triplex Plunger Pump
Direct Drive with Electric Flange NEMA 56C
Forged brass head & valve covers
Solid ceramic plungers

Specifications

Brand	AR North America
Manufacturer Part Number	XTV3G22D-F8
Max. Volume	3.0 GPM
Max. Discharge Pressure	2,200 PSI
Max. Pump Speed	3,400 RPM
Shaft Diameter	3/4” Hollow
Minimum Horsepower Requirements	4.5 BHP
Max. Fluid Temp.	160 degrees F.
Inlet Ports (2)	1/2″ BSP
Discharge Ports (2)	3/8″ BSP
Drive Side	Standard right
Weight	9.0-11.0 lb

Frequently Asked Questions

What shaft size does it have?

A 3/4" hollow shaft. Confirm that your motor shaft is 3/4" before ordering.

What horsepower is required?

A minimum of 4.5 BHP.

What are the port threads?

Two 1/2" BSP inlets and two 3/8" BSP outlets.

What is the max fluid temperature?

160°F.

Does it include an unloader?

No, this is the bare pump.

Product Specifications

Specification Name	Specification Value
Color pattern	Gold
Power source	AC-powered
