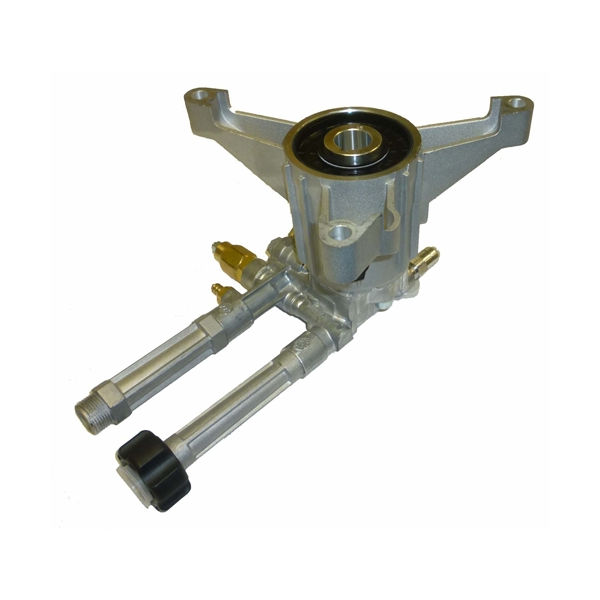

AR Annovi Reverberi RMW2.2G24-EZ-SX Vertical Shaft Pump, 2400 PSI, 2.2 GPM, 3400 RPM, 7/8" Shaft, Back Mount

The AR Annovi Reverberi RMW2.2G24-EZ-SX (also RMW22G24-EZ-SX) is an aluminum axial pump for vertical shaft gas engines with a 7/8" shaft, from 4 to 7 HP. It delivers 2.2 GPM at up to 2,400 PSI and includes a built-in pressure regulator, chemical injection, thermal relief valve and Easy Start valve. This SX version is back mounted, with a 180° rotated shaft configuration.

Key Features

• 3-Piston alternating volumetric pumps for use on cleaning units
• Check the HOLE in the ARM location relative to the inlet/outlet Port (2nd Picture)
• This SX pump is Back Mounted – 180º rotated shaft configuration (3rd picture)
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in aluminum
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Integral detergent suction system

Specifications

Frequently Asked Questions

What does back mount (SX) mean?

The SX pump's mounting is rotated 180° relative to the front mount version. Check the position of the hole in the mounting arm relative to the inlet and outlet ports before ordering.

What engines does it fit?

Most vertical 7/8" shaft gas engines from 4 to 7 HP.

What are the inlet and outlet?

3/4" garden hose inlet and 22mm-14 twist connect outlet.

Is a pressure regulator included?

Yes, an integral regulating valve, detergent suction, thermal relief valve and Easy Start valve.

What horsepower is required?

4.8 GHP industrial or 5.9 GHP standard rating.
