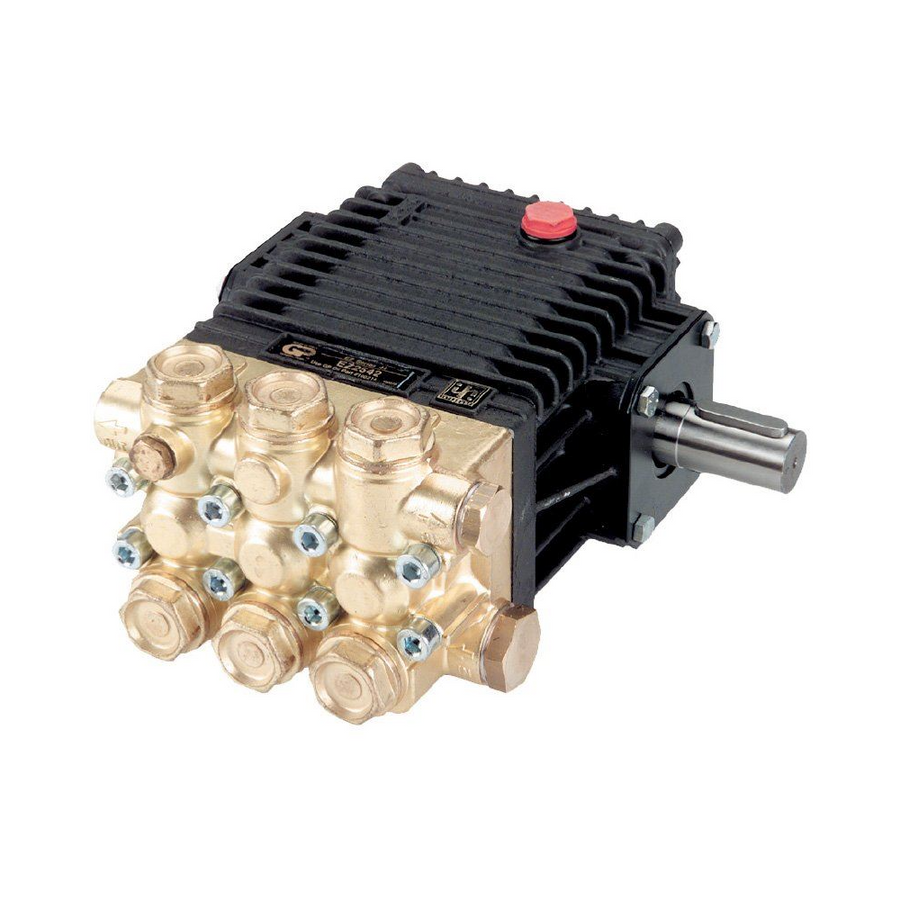

General Pump EZ2555S Solid Shaft Triplex Plunger Pump, 2500 PSI, 5.5 GPM, 24mm Shaft, Belt or Gear Drive

The General Pump EZ2555S is a solid shaft triplex plunger pump for belt drive, flex coupling or gear reduction. It delivers 5.5 GPM at up to 2,500 PSI, with solid ceramic plungers, a die-cast anodized oil-bath crankcase, premium roller bearings and unitized stainless steel valves.

Key Features

• Solid ceramic plunger design
• Flex coupling and bell housing available for direct drive
• Forged brass manifold with 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves
• Available in “L” left-handed versions
• Triplex Plunger Pump

Specifications

Note: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation

Frequently Asked Questions

How can it be driven?

By belt drive, flex coupling or gear reduction. A flex coupling and bell housing are available for direct drive.

What horsepower is required?

9.4 EBHP.

What are the port threads?

Two 1/2-14 BSPP female inlets and two 3/8-19 BSPP female outlets.

How much oil does it hold?

14.0 oz.

Is an unloader included?

No. It is pump only.
