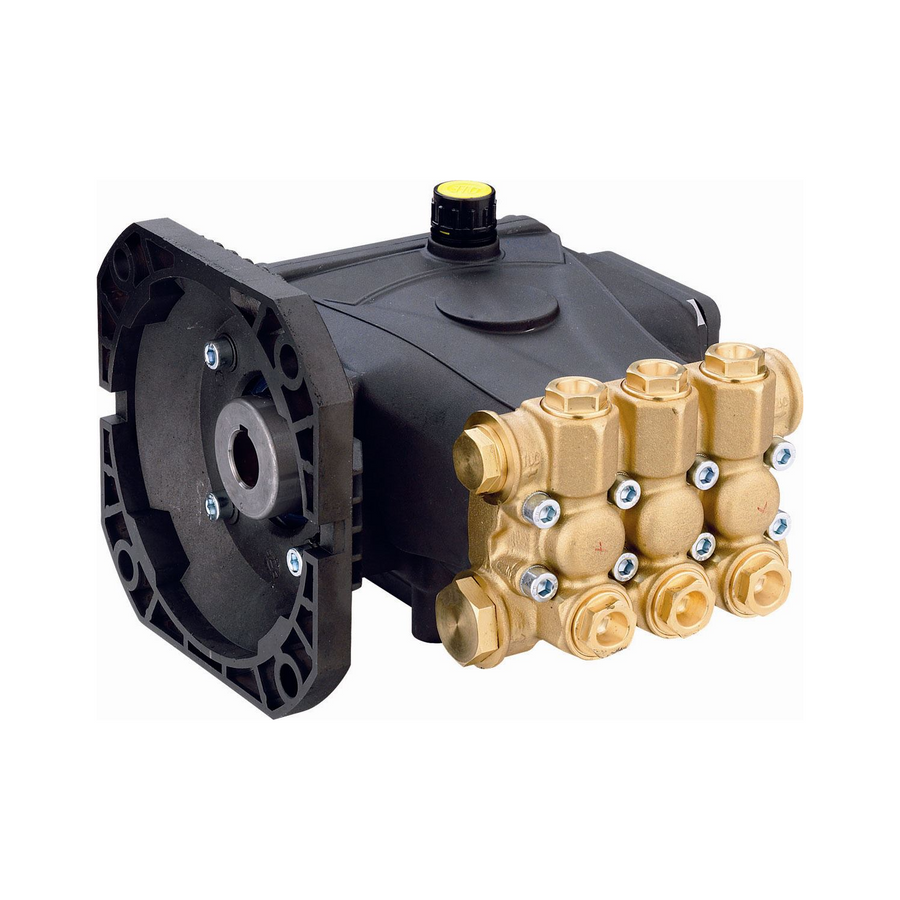

AR Annovi Reverberi RCV2G25E-F8-SX Triplex Plunger Pump, 2500 PSI, 2.0 GPM, 3400 RPM, NEMA 56C, Left Hand
Regular Price
$451.43
Press & drag to view
The AR Annovi Reverberi RCV2G25E-F8-SX is the left-hand version of the RCV2G25E-F8. It delivers 2.0 GPM at up to 2,500 PSI on NEMA 56C electric motors at 3,400 RPM, with the same forged brass manifold and ceramic plungers as the standard model.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCV2G25E-F8-SX |
| Max. Volume | 2.0 GPM |
| Max. Discharge Pressure | 2,500 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 5/8” Hollow |
| Drive Side | Left |
| Max. Horsepower Requirements | 3.4 EBHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What does the SX suffix mean?
It identifies the left-hand drive version.
What horsepower motor is needed?
3.4 EBHP.
What shaft does it accept?
A 5/8" motor shaft.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Does it include an unloader?
No, this is the bare pump.
