AR Annovi Reverberi RCV2.5G27D-F7-SX Triplex Plunger Pump, 2700 PSI, 2.5 GPM, 3400 RPM, 3/4" Shaft Gas, Left Hand
Regular Price
$478.10
Press & drag to view

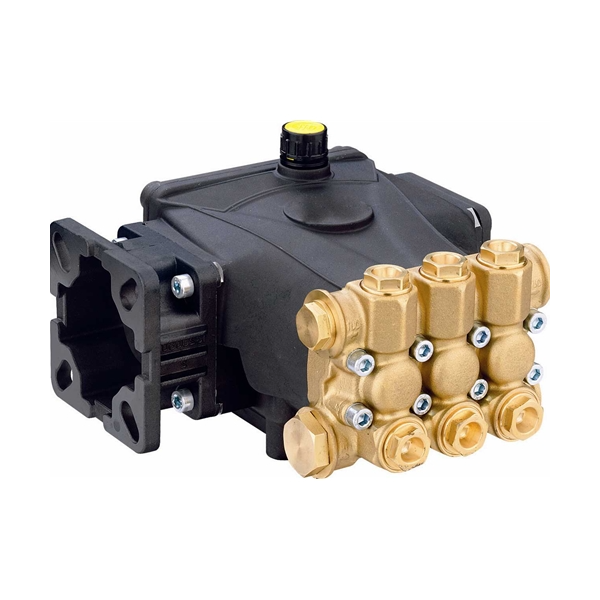

The AR Annovi Reverberi RCV2.5G27D-F7-SX is a left-hand triplex plunger pump with an F7 flange for gasoline engines from 5 to 7 HP with a 3/4" shaft. It runs at 3,400 RPM, is rated to 2,700 PSI and has a forged brass manifold, thick-wall ceramic plungers and stainless steel valves, life tested over 2,000 hours.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCV2.5G27D-F7-SX |
| Max. Volume | 2.5 GPM |
| Max. Discharge Pressure | 2,700 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 3/4” Hollow |
| Max. Horsepower Requirements | 7.36 GHP |
| Drive Side | Left |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What engines does it fit?
Gas engines from 5 to 7 HP with a 3/4" horizontal shaft.
What does SX mean?
SX is the left-hand drive version.
What horsepower does it need?
Up to 7.36 GHP.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Oil capacity?
9.81 oz.
