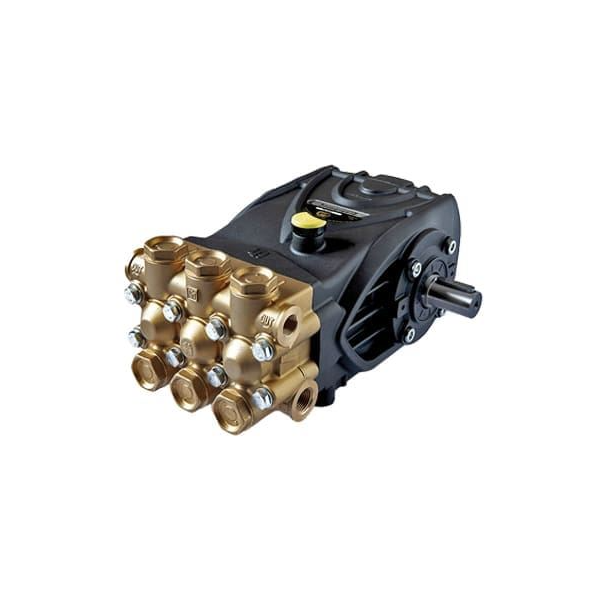

General Pump TS1711 Solid Shaft Triplex Plunger Pump, 2700 PSI, 3.5 GPM, 1450 RPM, 24mm Shaft
Regular Price
$887.81
Press & drag to view
The General Pump TS1711 is a TS Series triplex plunger pump, the preferred pump frame in the pressure cleaning industry. It delivers 3.5 GPM at up to 2,700 PSI at a slow 1,450 RPM through a 24mm solid shaft, with a forged brass manifold, oversized connecting rods and heavy-duty tapered roller bearings. It replaces the TS1331.
Key Features
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Triplex Plunger Pump
- Solid Shaft for Belt or Gear Drive
- Replaces TS1331
Specifications
| Brand | General Pump |
|---|---|
| Manufacturer Part Number | TS1711 |
| Max. Volume | 3.5 GPM |
| Max. Discharge Pressure | 2,700 PSI |
| Max. Pump Speed | 1450 RPM |
| Shaft Diameter | 24mm Solid |
| Max. Horsepower Requirements | 8.4 GHP |
| Max. Fluid Temp. | 165° F. |
| Inlet Ports (2) | 1/2-14 BSPP-F |
| Discharge Ports (2) | 3/8-19 BSPP-F |
| Drive Side | Standard right |
| Weight | 32.0 lb. |
Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
Frequently Asked Questions
What does it replace?
General Pump TS1331.
Why run at 1,450 RPM?
Lower speed reduces wear on seals, valves and bearings, extending service life in daily commercial use.
What horsepower is required?
8.4 GHP.
What are the port threads?
Two 1/2-14 BSPP female inlets and two 3/8-19 BSPP female outlets.
Is an unloader included?
No. It is pump only.
