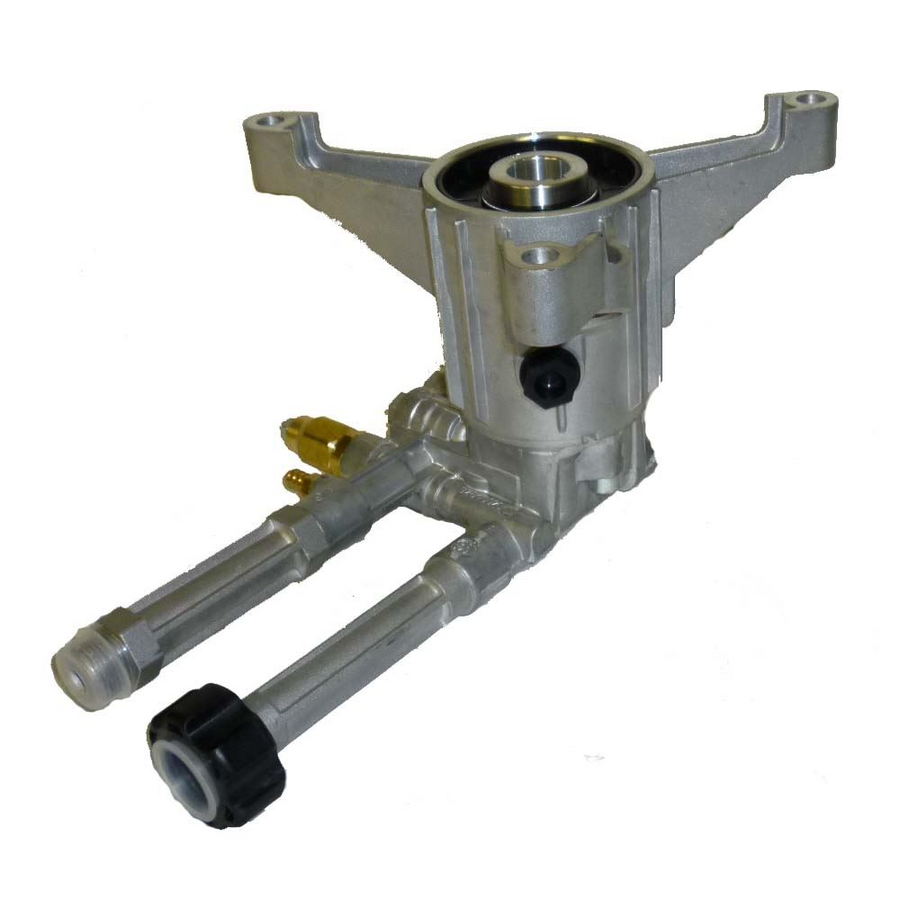

AR Annovi Reverberi SRMW2.4G28-EZ-SX Vertical Shaft Pump, 2800 PSI, 2.4 GPM, 3400 RPM, 7/8" Shaft, Back Mount
Regular Price
$218.86
Press & drag to view
The AR Annovi Reverberi SRMW2.4G28-EZ-SX (also SRMW24G28-EZ-SX) is the highest-pressure SRMW axial pump, delivering 2.4 GPM at up to 2,800 PSI on vertical shaft gas engines with a 7/8" shaft. It has upgraded S-grade valves, a built-in regulator, chemical injection, thermal relief valve and Easy Start, in the back mount configuration.
Key Features
- The “S” version has upgraded grade valves
- 3-Piston alternating volumetric pumps for use on cleaning units
- Pump body in die-cast aluminum alloy
- Pistons driven by swash plate mechanism
- Two bearing systems, to support the pump shaft and pistons
- Pistons in hardened and tempered steel
- Pump head in aluminum
- Double gasket sealing system
- Intake valves fitted above the pistons for greater efficiency
- Integral regulating valve
- Integral detergent suction system
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | SRMW24G28-EZ-SX |
| Max. Volume | 2.4 GPM |
| Max. Discharge Pressure | 2,800 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 7/8” Hollow |
| Maximum Horsepower Requirements (Industrial) | 6.1 GHP |
| Maximum Horsepower Requirements (Standard) | 7.5 GHP |
| Inlet Port | 3/4″ GHA (garden hose) |
| Outlet Port | 22mm-14 (Twist Connect) |
| Weight | 6.0 lb. |
Frequently Asked Questions
What engines does it fit?
Most vertical 7/8" shaft gas engines from 4 to 7 HP.
What does back mount mean?
The SX mount is rotated 180° compared with the front mount version. Match your old pump's mounting arm position.
What are the connections?
3/4" garden hose inlet and 22mm-14 twist connect outlet.
What horsepower does it need?
6.1 GHP industrial or 7.5 GHP standard rating.
What is included?
An integral pressure regulator, detergent suction, thermal relief valve and Easy Start valve.
