AR Annovi Reverberi RRV3G36D-F24 Triplex Plunger Pump, 3600 PSI, 3.0 GPM, 3400 RPM, 1" Shaft Gas Engines
Regular Price
$471.94
Press & drag to view

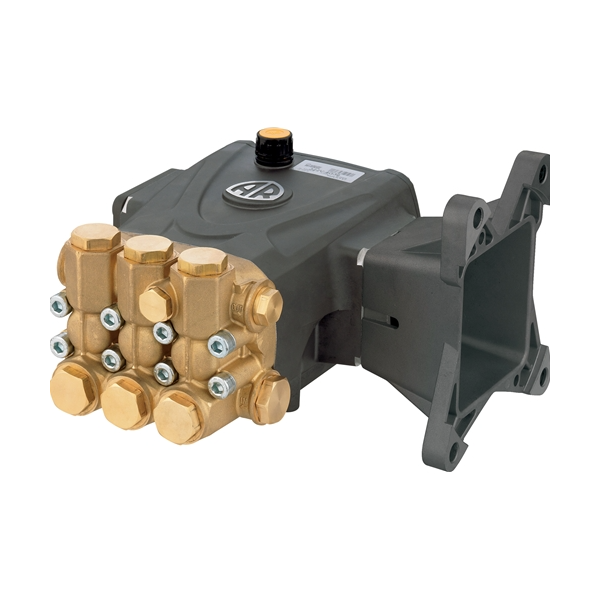

The AR Annovi Reverberi RRV3G36D-F24 is a heavy duty triplex plunger pump for 8 to 13 HP gasoline engines with a 1" shaft. It delivers 3.0 GPM at up to 3,600 PSI and has a forged brass manifold, thick-wall ceramic plungers and stainless valves, life tested over 2,000 hours.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RRV3G36D-F24 |
| Max. Volume | 3.0 GPM |
| Max. Discharge Pressure | 3,600 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 1” Hollow |
| Max. Horsepower Requirements | 9.82 GHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 13.35 oz |
| Weight | 18.0 lb. |
Frequently Asked Questions
What engines does it fit?
Gas engines from 8 to 13 HP with a 1" horizontal shaft.
What horsepower is needed?
9.82 GHP.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Oil capacity?
13.35 oz.
Does it include an unloader?
No, this is the bare pump.
