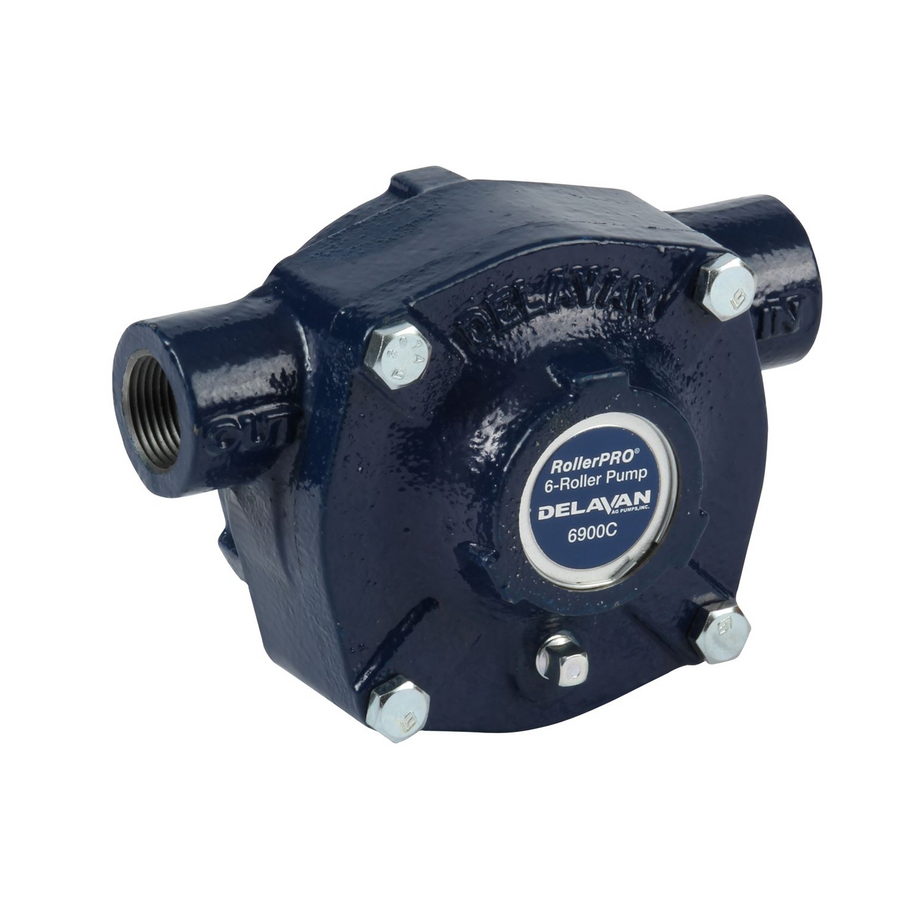

Delavan RollerPRO 6900C 6-Roller Pump, Cast Iron, 19.6 GPM, 150 PSI, 5/8" Solid Shaft, 3/4" NPT, CCW
Regular Price
$188.08
Press & drag to view
The Delavan RollerPRO 6900C is a 6-roller cast iron pump for PTO-driven sprayers at up to 1,000 RPM. It delivers 19.6 GPM at up to 150 PSI, has 3/4" female NPT ports and a 5/8" solid shaft, and its 3/4" Ultra rollers can be replaced in the field in about 3 minutes.
Key Features
- Complete roller replacements takes about 3 minutes
- To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
Specifications
| Brand | Delavan |
|---|---|
| Manufacturer Part Number | 6900C |
| Type | 6-Roller design |
| Max. Flow | 19.6 GPM |
| Max Operating Speed | 1,000 RPM |
| Max Pressure | 150 PSI |
| Max Recommended Temperature | 140°F (60° C) |
| Port Size | 3/4” NPT (female) |
| Base Mounted | 5⁄16 -18 UNC-2B (2 holes) |
| PTO | Use torque bar and chain |
| Shaft Size | 5⁄8” solid shaft |
| Rotation | CCW (standard) |
| Housing | Cast Iron |
| Rollers | 3⁄4” Ultra rollers (standard) |
| Shaft Seals | Viton cartridge type lip seals |
| Seal Ring | Viton |
| Shaft & Rotor | Extra-fine finish 404 SST |
| Bearings | Permanently-lubricated, heavy-duty sealed bearings |
| Weight | 9 lbs |
Frequently Asked Questions
Can it run from a tractor PTO?
Yes. It is rated to 1,000 RPM and mounts with a torque bar and chain.
What is the rotation?
Counterclockwise (CCW) standard. For clockwise, see the 6900C-R.
What are the ports?
3/4" female NPT.
What seals does it use?
Viton cartridge-type lip seals and a Viton seal ring.
Max fluid temperature?
140°F (60°C).
