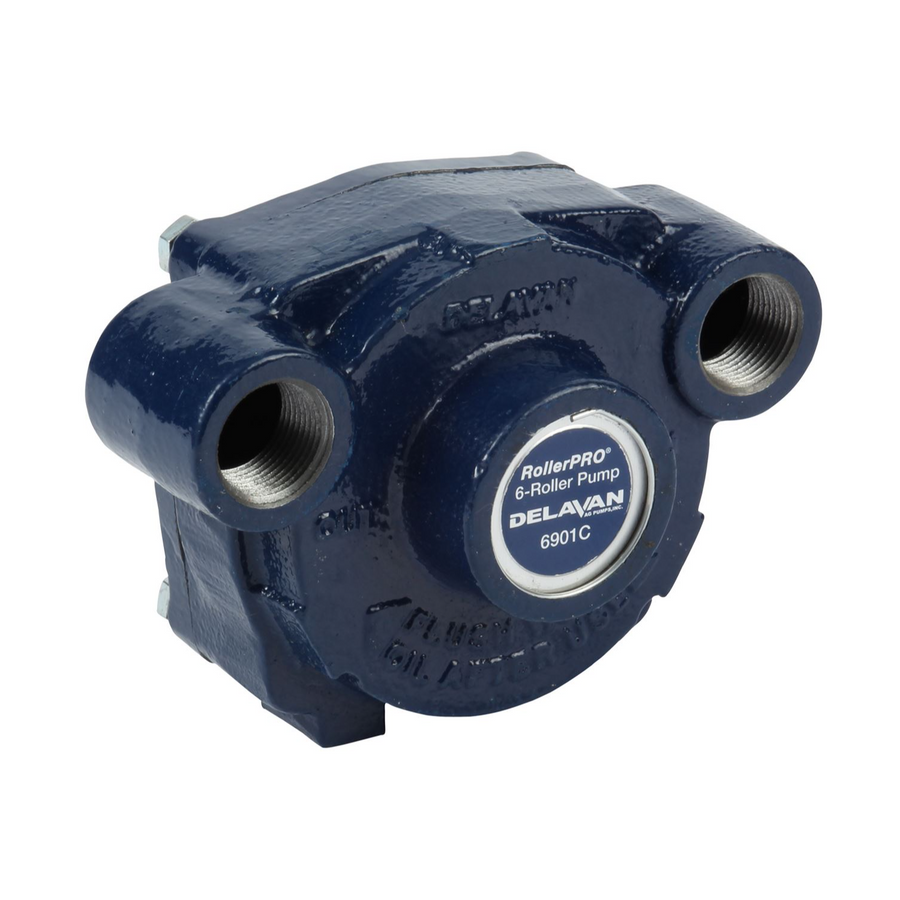

Delavan RollerPRO 6901C 6-Roller Pump, Cast Iron, 19.6 GPM, 150 PSI, Rear Ports, 5/8" Solid Shaft, CCW
Regular Price
$218.86
Press & drag to view
The Delavan RollerPRO 6901C is the rear-port version of the 6900C 6-roller cast iron pump. It delivers 19.6 GPM at up to 150 PSI at up to 1,000 RPM, with 3/4" female NPT rear ports, a 5/8" solid shaft and field-replaceable Ultra rollers.
Key Features
- Complete roller replacements takes about 3 minutes
- To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
Specifications
| Brand | Delavan |
|---|---|
| Manufacturer Part Number | 6901C |
| Type | 6-Roller design |
| Max. Flow | 19.6 GPM |
| Max Operating Speed | 1,000 RPM |
| Max Pressure | 150 PSI |
| Max Recommended Temperature | 140°F (60° C) |
| Port Size | 3/4” NPT female (rear ports) |
| Base Mounted | 5⁄16 -18 UNC-2B (2 holes) |
| PTO | Use torque bar and chain |
| Shaft Size | 5⁄8” solid shaft |
| Rotation | CCW (standard) |
| Housing | Cast Iron |
| Rollers | 3⁄4” Ultra rollers (standard) |
| Shaft Seals | Viton cartridge type lip seals |
| Seal Ring | Viton |
| Shaft & Rotor | Extra-fine finish 404 SST |
| Bearings | Permanently-lubricated, heavy-duty sealed bearings |
| Weight | 9 lbs |
Frequently Asked Questions
What is different about the 6901C?
It has rear-facing ports, which can simplify plumbing on some sprayers.
What are the ports?
3/4" female NPT, rear ports.
What is the rotation?
Counterclockwise (CCW) standard.
What is the max speed?
1,000 RPM.
How is it mounted on a PTO?
Use a torque bar and chain.
