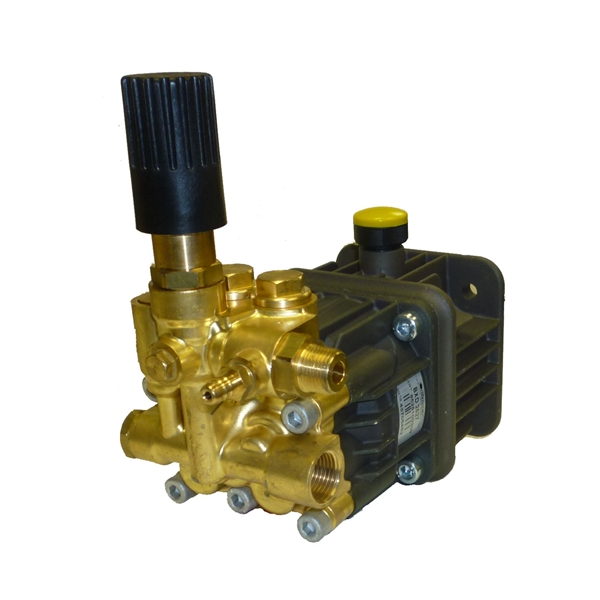

Comet BXD 2525G Axial Pump with Unloader, Injector & Easy Start, 2500 PSI, 2.2 GPM, 3/4" Shaft Gas (31038-00004)
Regular Price
$273.58
Press & drag to view
The Comet BXD 2525G (part 31038-00004) is a commercial duty axial pump for 4 to 7 HP gas engines with a 3/4" shaft. It delivers 2.2 GPM at up to 2,500 PSI and includes a built-in adjustable uniflow unloader, chemical injector and easy start, with stainless steel plungers and a forged brass manifold.
Key Features
- Direct Drive with Gas Flange 4-7 HP SAE (2-9/16 center to center)
- Built-In adjustable Uniflow unloader and chemical injector
- Fits most horizontal engines with a 3/4” straight solid shaft with keyway
- Built-In easy start
- Double sealing system
- Stainless steel plungers
- Stainless steel check valves
- Steel shaft with built-in key
- Easy view oil level sight glass
- Forged brass manifold
- Patent registered ball bearing design
- Replaces Comet # 6525.1001.00
Specifications
| Brand | Comet Pump |
|---|---|
| Manufacturer Part Number | 31038-00004 |
| Max. Volume | 2.2 GPM |
| Max. Discharge Pressure | 2,500 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 3/4” Hollow |
| Maximum Horsepower Requirements | 5.0 GHP |
| Inlet Port | 1/2″ FPT |
| Outlet Port | 3/8″ Male NPT |
| Auxiliary Port | 3/8″ Female |
| Weight | 11.0 lb. |
Frequently Asked Questions
What does it replace?
Comet 6525.1001.00.
Does it have easy start?
Yes, built-in easy start makes pulling the engine easier.
What are the ports?
1/2" FPT inlet, 3/8" MPT outlet and 3/8" female auxiliary port.
What horsepower is required?
5.0 GHP.
How do I check the oil?
Through the easy view oil level sight glass.
