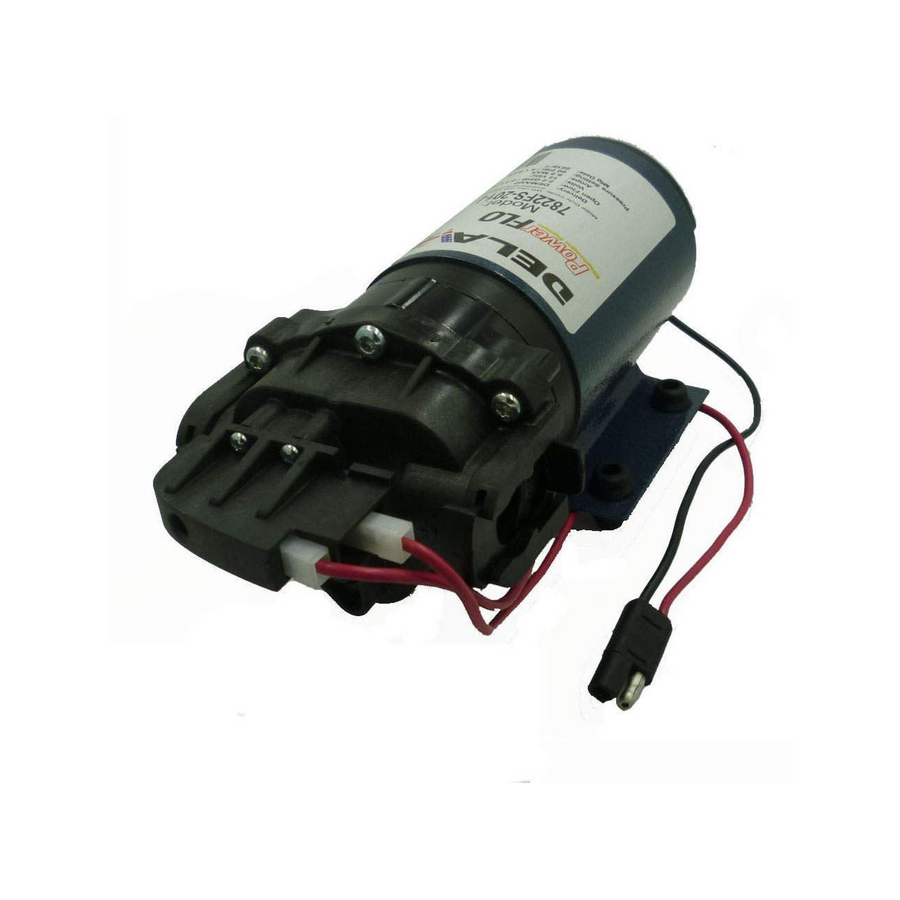

Delavan 7822FS-201-SBI Flex I-Series 12V Diaphragm Pump, 2.2 GPM, 60 PSI, Demand, 3/4" Quick Attach Ports

Name: Delavan 7822FS-201-SBI Flex I-Series 12V Diaphragm Pump, 2.2 GPM, 60 PSI, Demand, 3/4" Quick Attach Ports
Brand: Delavan
SKU: 7822FS-201-SBI
Price: 82.07 USD
Availability: InStock

Vendor: Delavan Type: Diaphragm Pump

$82.07

Shipping calculated at checkout.

Hurry up! Only 7 left

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

The Delavan 7822FS-201-SBI is the I-Series version of the Flex sprayer pump, a cost-effective 12 volt replacement that fits most spray systems using 3/4" Quick Attach fittings. It delivers 2.2 GPM, shuts off at 60 PSI on demand and uses Santoprene valves and diaphragm. It replaces part numbers 7822FS-201-I and 7822FS-201-BBI.

Key Features

100% Factory tested
2 Year warranty from date of purchase
This demand pump will turn off when the spray gun or boom is turned off, saving energy and increasing the life of the pump
Demand Switch – Operates only when liquid flow is required
Capable of being run dry
Excellent self-priming capability
Replaces 7822FS-201-I, 7822FS-201-BBI

Specifications

Brand	Delavan
Manufacturer Part Number	7822FS-201-SBI
Motor Type	12 VDC permanent magnet, totally enclosed, non-ventilated
Motor Leads	14 AWG, 6” long with 2-pin connector
Motor Max Amps	8.5
Motor Duty Cycle	See Heat Rise graph
Motor Shell	Coated Steel
Housing	Polypropylene
Valves	Santoprene
Diaphragm	Santoprene
Fasteners	Stainless Steel
Pump Type	3-chamber positive displacement
Liquid Temperature	140°F Max.
Priming Capabilities	14’
Max. Flow	2.2 GPM
Pressure Shut-Off	60 PSI
Inlet/Outlet Ports	3/4 Quick Attach
Packaging	Small box
Weight	6.0 lbs

Frequently Asked Questions

Which part numbers does the 7822FS-201-SBI replace?

It replaces Delavan 7822FS-201-I and 7822FS-201-BBI.

What are the electrical requirements?

It runs on 12 VDC with a maximum draw of 8.5 amps, using 14 AWG leads 6" long with a 2-pin connector.

Can I use it on an ATV or UTV sprayer?

Yes. At 2.2 GPM and 60 PSI on 12V, it is sized for ATV, UTV, spot and small boom sprayers, and the demand switch stops the pump when you release the gun.

Does it need priming?

No. It is self-priming up to 14 feet and can run dry without damage.

What is the warranty?

It is 100% factory tested and carries a 2 year warranty from the date of purchase.
