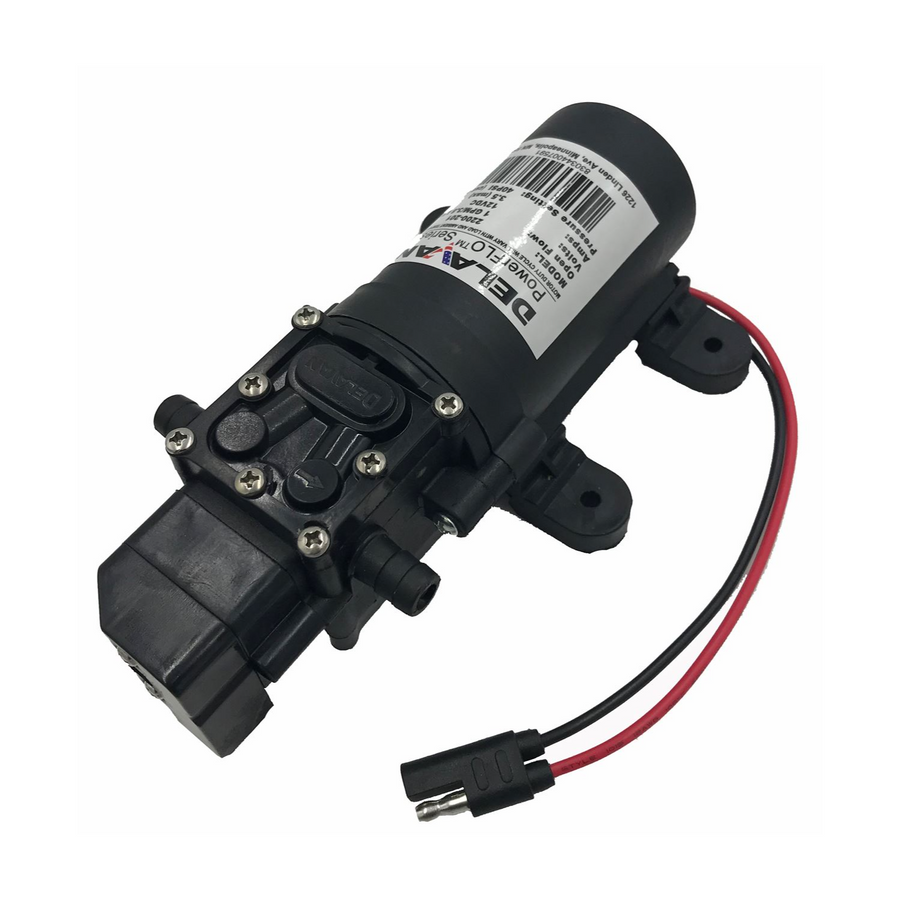

Delavan 2200-201-SB PowerFLO 2200 Series 12V Diaphragm Pump, 1.0 GPM, 40 PSI, Demand, 3/8" Hose Barb

Name: Delavan 2200-201-SB PowerFLO 2200 Series 12V Diaphragm Pump, 1.0 GPM, 40 PSI, Demand, 3/8" Hose Barb
Brand: Delavan
SKU: 2200-201-SB
Price: 30.09 USD
Availability: InStock

Vendor: Delavan Type: Diaphragm Pump

$30.09

Shipping calculated at checkout.

Stock adequate! Ready to ship

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

The Delavan 2200-201-SB is a compact 12 volt diaphragm pump for small spot sprayers, backpack-style units and light transfer jobs. It moves up to 1.0 GPM, shuts off at 40 PSI on demand and draws only 3.5 amps, so it is easy on batteries. It weighs about 1.25 lbs and connects with 3/8" hose barbs.

Key Features

Demand Switch – Operates only when liquid flow is required
Capable of being run dry
Excellent self-priming capability

Specifications

Brand	Delavan
Manufacturer Part Number	2200-201-SB
Motor Type	12 VDC, permanent magnet, thermally protected, splash proof
Motor Leads	18 AWG, 4.5” long with 2-pin connector
Motor Amps	3.5 Max.
Motor Duty Cycle	Intermittent
Motor Housing	Nylon 6/6
Pump Housing	Polypropylene
Valves	Viton
Diaphragm	Santoprene
Shut-Off	40 ±5 PSI factory setting
Turn-On	25 ±5 PSI factory setting
Pump Type	2-chamber positive displacement
Liquid Temperature	110°F Max.
Priming Capabilities	4 feet suction lift
Max. Flow	1.0 GPM
Max Pressure	40 PSI
Inlet/Outlet Ports	3/8” hose barb
Packaging	Small box
UPC	830344009724 & 830344007591
Weight	1.25 lbs

Frequently Asked Questions

When does the 2200-201-SB turn on and off?

It shuts off at 40 ±5 PSI and turns back on at 25 ±5 PSI (factory settings), so it runs only when you are spraying.

Is this pump rated for continuous duty?

No. The 2200 Series motor is rated for intermittent duty. It is thermally protected and splash proof.

What hose fits this pump?

The inlet and outlet are 3/8" hose barbs, so use 3/8" inside diameter hose with clamps.

How high can it lift liquid?

It self-primes with up to 4 feet of suction lift and can be run dry.

What is the maximum liquid temperature?

110°F. It uses a nylon 6/6 motor housing, polypropylene pump housing, Viton valves and a Santoprene diaphragm.
