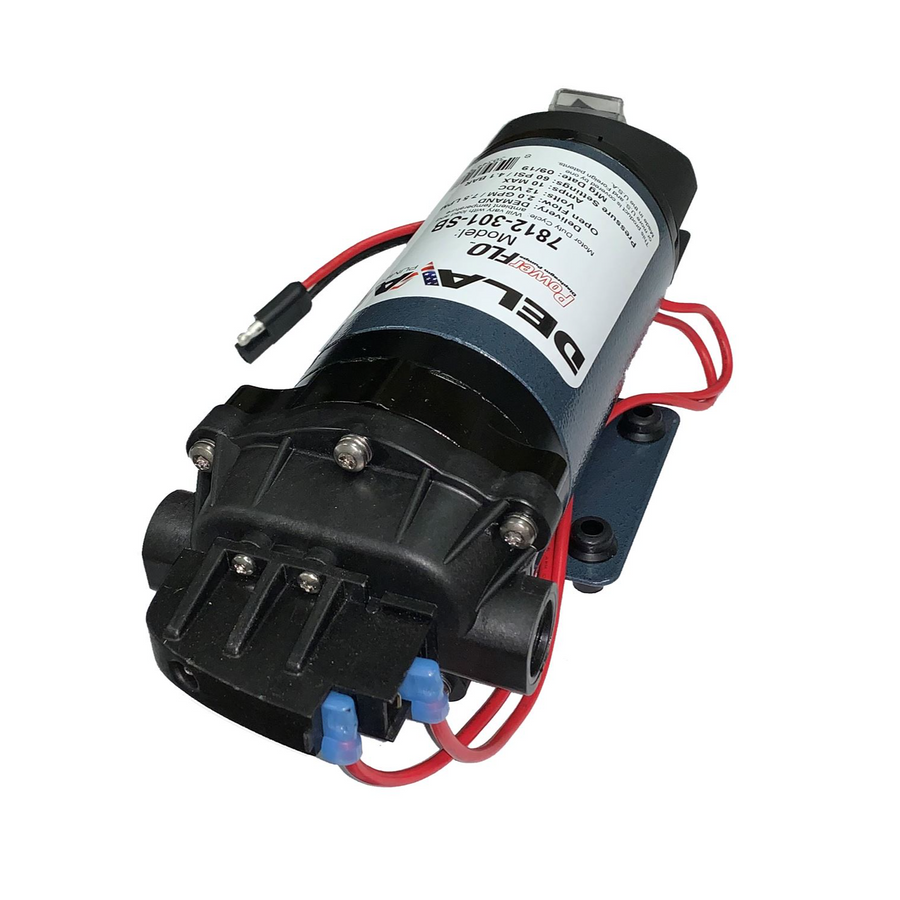

Delavan 7812-301-SB PowerFLO 12V Diaphragm Pump with On/Off Switch, 2.0 GPM, 60 PSI, Demand, 3/8" FNPT

The Delavan 7812-301-SB is a PowerFLO 7812 Series 12 volt pump with a built-in On/Off switch, so you can control the pump right at the unit without extra wiring. It delivers 2.0 GPM, shuts off at 60 PSI on demand and has 3/8" FNPT threaded ports. It is NSF/ANSI 61 and 372 certified and made in the USA.

Key Features

• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• On/Off Switch
• 100% Factory tested
• 2 Year warranty from date of purchase
• NSF/ANSI Standard 61 – Drinking Water System Components – Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act
• Demand Switch – Operates only when liquid flow is required
• Capable of being run dry
• Excellent self-priming capability

Specifications

Frequently Asked Questions

How is the 7812-301-SB different from the 7812-201-SB?

Both are 2.0 GPM, 60 PSI demand pumps with 3/8" FNPT ports. The 7812-301-SB adds a built-in On/Off switch on the pump.

What size fuse and wire should I use?

The motor draws up to 8.5 amps at 12 VDC. Size the fuse and wiring for that draw and the length of your run. Leads are 14 AWG, 6" long, with a 2-pin connector.

What can I use it for?

It suits ATV and UTV sprayers, spot sprayers, RV and potable water systems, and general 12V transfer of water and compatible chemicals.

Can it run dry?

Yes. It is a 3-chamber positive displacement pump that can run dry and self-primes up to 14 feet.

Is it approved for drinking water?

Yes. It is certified to NSF/ANSI 61 for drinking water system components and NSF/ANSI 372 for lead-free plumbing.
