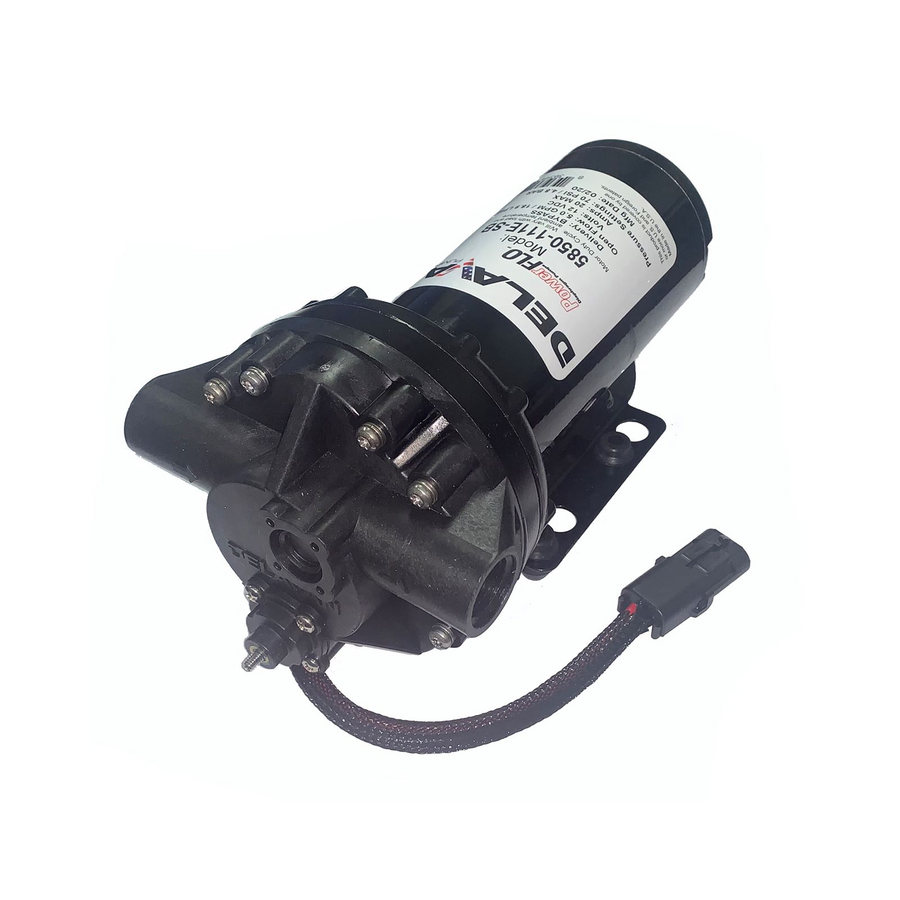

Delavan 5850-111E-SB PowerFLO 12V Diaphragm Pump, 5.0 GPM, 60 PSI, Bypass, 1/2" FNPT, Weatherproof Connector

The Delavan 5850-111E-SB is a high-flow 12 volt pump that delivers 5.0 GPM with an internal bypass for continuous duty. It is rated 60 PSI with a 70 PSI bypass setting, has 1/2" FNPT ports and 12" leads with a Delphi weatherproof connector. It suits boom sprayers, agitation and transfer jobs that need steady flow.

Key Features

• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• NSF/ANSI Standard 61 – Drinking Water System Components – Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor
• Bypass Design – Continuous operation
• Capable of being run dry
• Excellent self-priming capability

Specifications

Frequently Asked Questions

How much current does the 5850-111E-SB draw?

Up to 20 amps at 12 VDC, so use wiring and a fuse sized for that draw.

Is this a demand or bypass pump?

Bypass. It keeps running with outlets closed and recirculates liquid internally at the 70 PSI setting.

What fittings does it need?

1/2" male NPT fittings for the 1/2" FNPT ports.

Can it be used for drinking water?

Yes. It is certified to NSF/ANSI 61 and NSF/ANSI 372.

What is the warranty?

2 years from the date of purchase.
