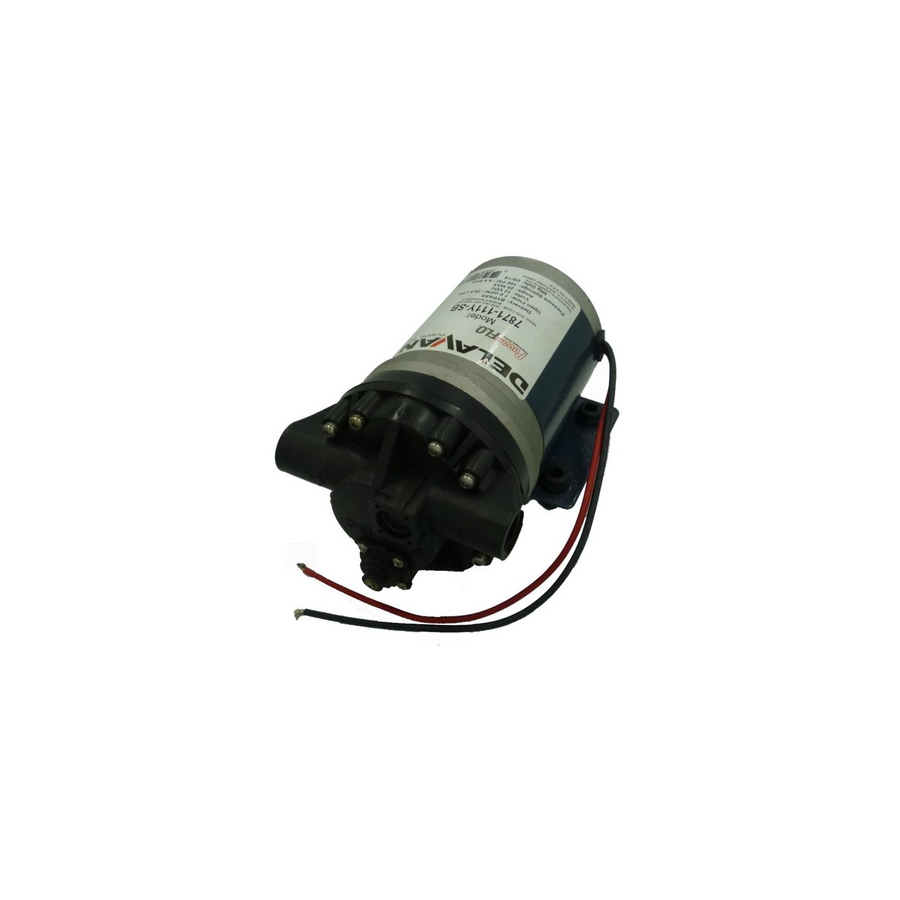

Delavan 7871-111Y-SB FB3 Advanced 12V Diaphragm Pump, 7.0 GPM, 100 PSI, Bypass, 1/2" FNPT Ports

The Delavan 7871-111Y-SB is the 100 PSI bypass version of the PowerFLO Advanced FB3, Delavan's most advanced high-flow 12 volt pump. It delivers 7.0 GPM, runs continuously with an internal bypass and uses a new diaphragm retaining system that maintains flow longer in demanding work like soft washing and de-icing.

Key Features

• FB3 pumps are Delavan’s new advanced 12V smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 12V pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor
• Bypass Design – Continuous operation with internal bypass
• Capable of being run dry
• Excellent self-priming capability

Specifications

Frequently Asked Questions

How does the FB3 improve on the FB2?

The FB3 adds a new diaphragm retaining system that maintains flow over longer hours, plus high-torque motors and stainless fasteners as standard.

What is the current draw?

Up to 25 amps at 100 PSI. Leads are 12 AWG, 6" long.

Can it run continuously?

Yes, with the internal bypass. Delavan recommends a heat sink for extended continuous use.

What ports does it have?

1/2" FNPT threaded ports. A 3/4" Quick Attach version is the 7971-111Y-SB.

Will it self-prime?

Yes, up to 14 feet, and it can be run dry.
