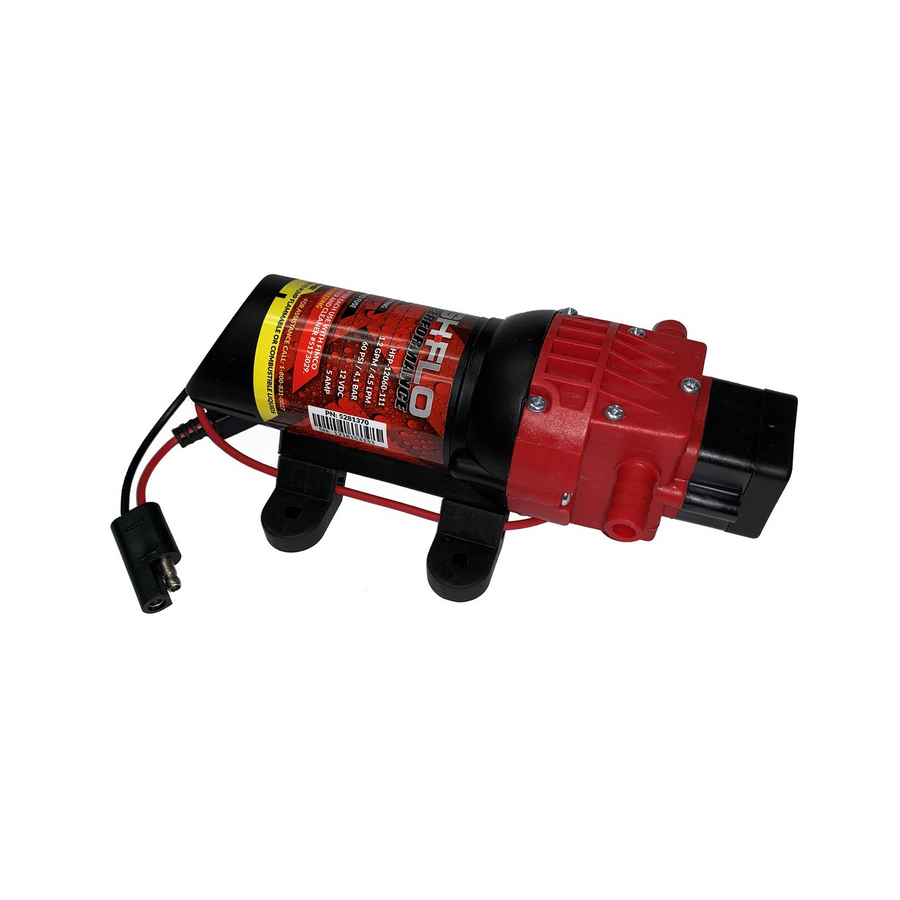

Fimco High-Flo HFP-12060-111 12V Diaphragm Pump, 1.2 GPM, 60 PSI, Demand, 3/8" Hose Barb (5151086)

The Fimco High-Flo HFP-12060-111 (box 5151086, pump 5281370) is a High Performance 12 volt demand pump for spot sprayers, liquid fertilizer units, washdown and transfer. It delivers 1.2 GPM with a 60 PSI pressure switch, has a fan cooled motor and draws just 4 amps. It replaces and upgrades Fimco pump 5275086 and several earlier part numbers.

Key Features

• Increased Flow Rates
• Increased Motor Life
• Optimized Chamber Flow
• Improved Check Valves
• Chemical resistant elastomers
• Fan Cooled Motor
• Self priming – Up to 8‘
• Runs dry without damage
• 100% Factory tested
• Roundup® ready
• Automatic demand diaphragm pump
• 12 Volt DC power
• 1.2 GPM max. flow
• 60 PSI pressure switch
• Viton Valves
• Santoprene Diaphragm
• In-Line 5 AMP fuse protection – 4 AMP max draw
• 3/8” Hose barb connections
• Fimco Box #: 5151086
• Replaces Fimco #’s 5277980, 5275086, 5275702, 5275496, 5273882, 5275015
• 2 Year consumer limited warranty
• 90 Day commercial limited warranty
• Do not use for bleach or petroleum products

Specifications

Frequently Asked Questions

Which Fimco pumps does it replace?

It replaces Fimco 5277980, 5275086, 5275702, 5275496, 5273882 and 5275015.

What fuse does it use?

It has in-line 5 amp fuse protection and a maximum draw of 4 amps.

What connections does it have?

3/8" hose barb connections.

Can I spray bleach with it?

No. Do not use this pump for bleach or petroleum products.

What warranty is included?

A 2 year consumer limited warranty and a 90 day commercial limited warranty.
