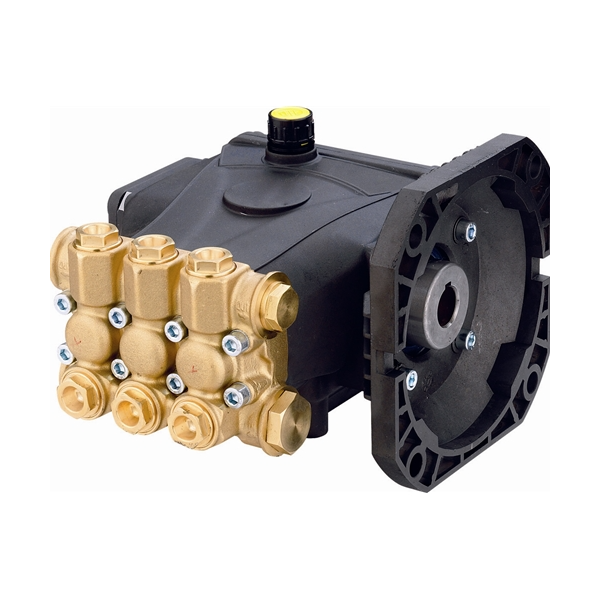

AR Annovi Reverberi RCA2G22E-F8 Triplex Plunger Pump, 2200 PSI, 2.0 GPM, 1750 RPM, NEMA 56C, 5/8" Hollow Shaft
Regular Price
$451.43
Press & drag to view
The AR Annovi Reverberi RCA2G22E-F8 is a heavy duty triplex plunger pump that mounts directly to NEMA 56C electric motors at 1,750 RPM. It delivers 2.0 GPM at up to 2,200 PSI with a forged brass manifold, thick-wall ceramic plungers, stainless valves and a large sight glass, and it is life tested over 2,000 hours.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCA2G22E-F8 |
| Max. Volume | 2.0 GPM |
| Max. Discharge Pressure | 2,200 PSI |
| Max. Pump Speed | 1,750 RPM |
| Shaft Diameter | 5/8” Hollow |
| Max. Horsepower Requirements | 3.0 EBHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What horsepower is required?
3.0 EBHP.
What motor speed does it need?
1,750 RPM.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Is there a left-hand version?
Yes, the RCA2G22E-F8-SX.
How much oil does it hold?
9.81 oz.
