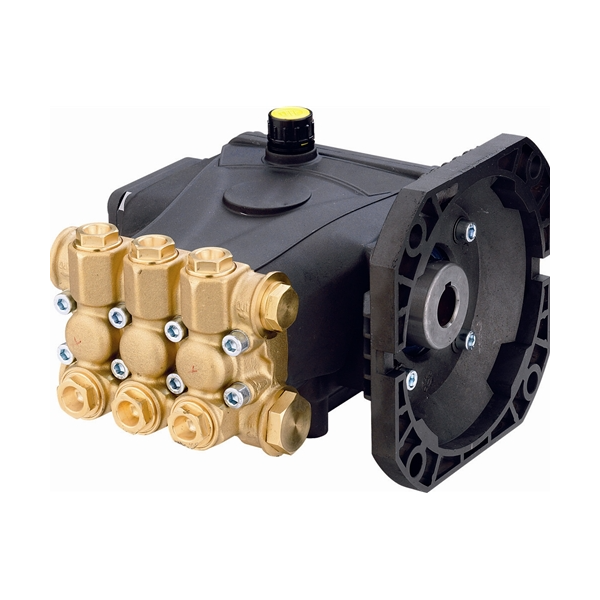

AR Annovi Reverberi RCV3G25E-F8 Triplex Plunger Pump, 2500 PSI, 3.0 GPM, 3400 RPM, NEMA 56C, 5/8" Hollow Shaft
Regular Price
$451.43
Press & drag to view
The AR Annovi Reverberi RCV3G25E-F8 is a 3,400 RPM triplex plunger pump for NEMA 56C electric motors. It delivers 3.0 GPM at up to 2,500 PSI and features a forged brass manifold, thick-wall ceramic plungers and stainless steel valves.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCV3G25E-F8 |
| Max. Volume | 3.0 GPM |
| Max. Discharge Pressure | 2,500 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 5/8” Hollow |
| Max. Horsepower Requirements | 5.1 EBHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What is the difference between RCA and RCV?
RCA pumps run at 1,750 RPM and RCV pumps run at 3,400 RPM. Match the pump to your motor speed.
What horsepower is required?
5.1 EBHP.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Max water temperature?
140°F.
Oil capacity?
9.81 oz.
