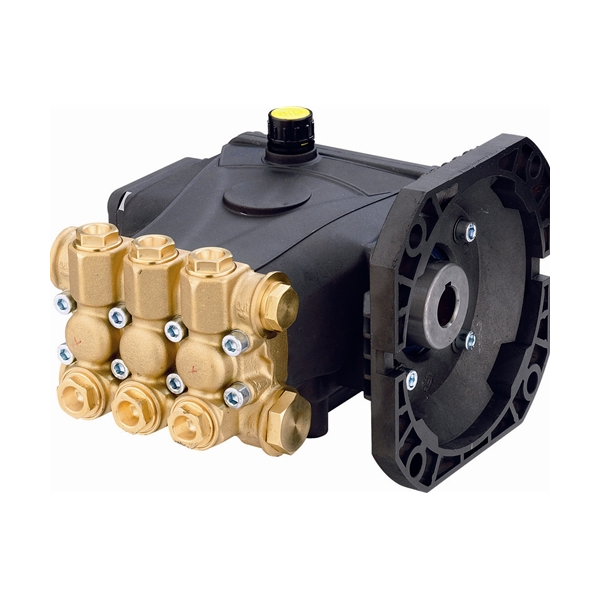

AR Annovi Reverberi RCV3G27D-F8 Triplex Plunger Pump, 2700 PSI, 3.0 GPM, 3400 RPM, NEMA 56C, 3/4" Hollow Shaft
Regular Price
$485.63
Press & drag to view
The AR Annovi Reverberi RCV3G27D-F8 delivers 3.0 GPM at up to 2,700 PSI at 3,400 RPM. It has an F8 flange for NEMA 56C electric motors and a 3/4" hollow shaft, plus a forged brass manifold, thick-wall ceramic plungers and stainless steel valves.
Key Features
- Latest in design and technology
- New crankcase style
- High strength forged brass manifold for long term use
- NEW ceramic plungers, thicker wall to help prevent thermal shock
- Stainless steel valves
- Side mount valve seat o-rings
- High quality high pressure seals
- NEW low pressure seal with built in scraper
- Two piece piston guides
- NEW connecting rod with 12% more load surface
- Large side cover sight glass
- Oversized bearings
- Rear cover oil drain
- Forged, precision ground crankshaft
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | RCV3G27D-F8 |
| Max. Volume | 3.0 GPM |
| Max. Discharge Pressure | 2,700 PSI |
| Max. Pump Speed | 3,400 RPM |
| Shaft Diameter | 3/4” Hollow |
| Max. Horsepower Requirements | 5.5 EBHP |
| Max. Fluid Temp. | 140° F. |
| Inlet Ports (2) | 1/2″ Female |
| Outlet Ports (2) | 3/8″ Female |
| Oil capacity | 9.81 oz |
| Weight | 11.0 lb. |
Frequently Asked Questions
What shaft size does it accept?
A 3/4" shaft. Confirm your motor shaft size before ordering.
What horsepower does it need?
5.5 EBHP.
What are the ports?
Two 1/2" female inlets and two 3/8" female outlets.
Max fluid temperature?
140°F.
Oil capacity?
9.81 oz.
