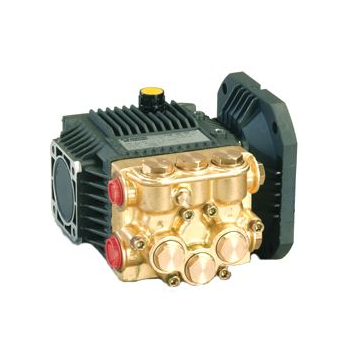

AR Annovi Reverberi XTA2G15EBA-F8 Triplex Plunger Pump, 1500 PSI, 2.1 GPM, 1750 RPM, NEMA 56C, 5/8" Hollow Shaft
Regular Price
$540.35
Press & drag to view
The AR Annovi Reverberi XTA2G15EBA-F8 is an XTA series triplex plunger pump for NEMA 56C electric motors at 1,750 RPM. It delivers 2.1 GPM for moderate pressure washing, with a brass head, thick solid ceramic plungers, anodized cooling fins and oversized bearings.
Key Features
- Constructed with die-cast bodies and feature a brass head
- Internal components include special thick solid ceramic plungers for long life and durability
- Precision cast cooling fins are anodized for maximum heat dissipation
- Oversized needle bearings on the drive side, and ball bearing on the non-drive side assure positive proper shaft alignment and maximum life
- One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement
- Direct Drive with Electric Flange NEMA 56C
- Forged brass head & valve covers
- Solid ceramic plungers
Specifications
| Brand | AR North America |
|---|---|
| Manufacturer Part Number | XTA2G15EBA-F8 |
| Max. Volume | 2.1 GPM |
| Max. Discharge Pressure | 1,500 PSI |
| Max. Pump Speed | 1750 RPM |
| Shaft Diameter | 5/8” Hollow |
| Minimum Horsepower Requirements | 2.5 BHP |
| Max. Fluid Temp. | 160 degrees F. |
| Inlet Ports (2) | 1/2″ BSP |
| Discharge Ports (2) | 3/8″ BSP |
| Drive Side | Standard right |
| Weight | 10.0 lb |
Frequently Asked Questions
What motors does the XTA series fit?
NEMA 56C electric motors from 1.5 to 6.0 HP with a 5/8" shaft.
What horsepower is required?
A minimum of 2.5 BHP.
What are the port threads?
Two 1/2" BSP inlets and two 3/8" BSP outlets.
Max fluid temperature?
160°F.
What are the bearings?
Oversized needle bearings on the drive side and a ball bearing on the non-drive side.
